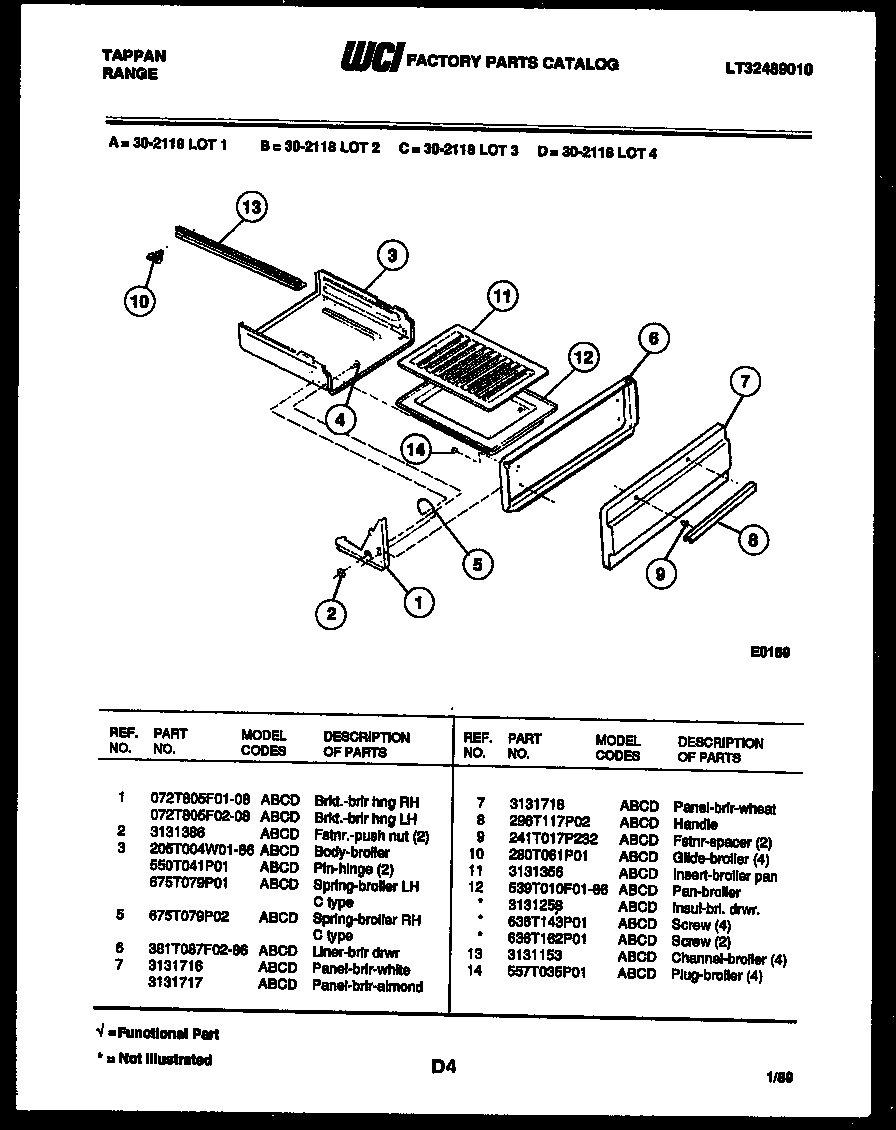

30-2118-66-03 04 – BROILER DRAWER PARTS

Products

Position	Product
1A	WCI 072T805F02-08
1	WCI 072T805F01-08
2	WCI 3131386
3A	PIN, HINGE (2)
3B	SPRING-BROILR LH C-TYPE
3	BODY, BROILER
5	SPRING-BROILR RH C-TYPE
6	LINER (BROILR DRWR)
7	PANEL BROILR (WHEAT)
8	WCI 296T117P02
9	FSTNR-SPACER (2)
10	GLIDE - BROILER
11	WCI 3131356
12	PAN, BROILER
12C	SCREW PNL ASSY (2)
12A	INSUL, BRL, DRWR (NON-ILLUSTRATED)
12B	5303300265 Frigidaire Oven Screw
13	WCI 3131153
14	WCI 557T035P01
