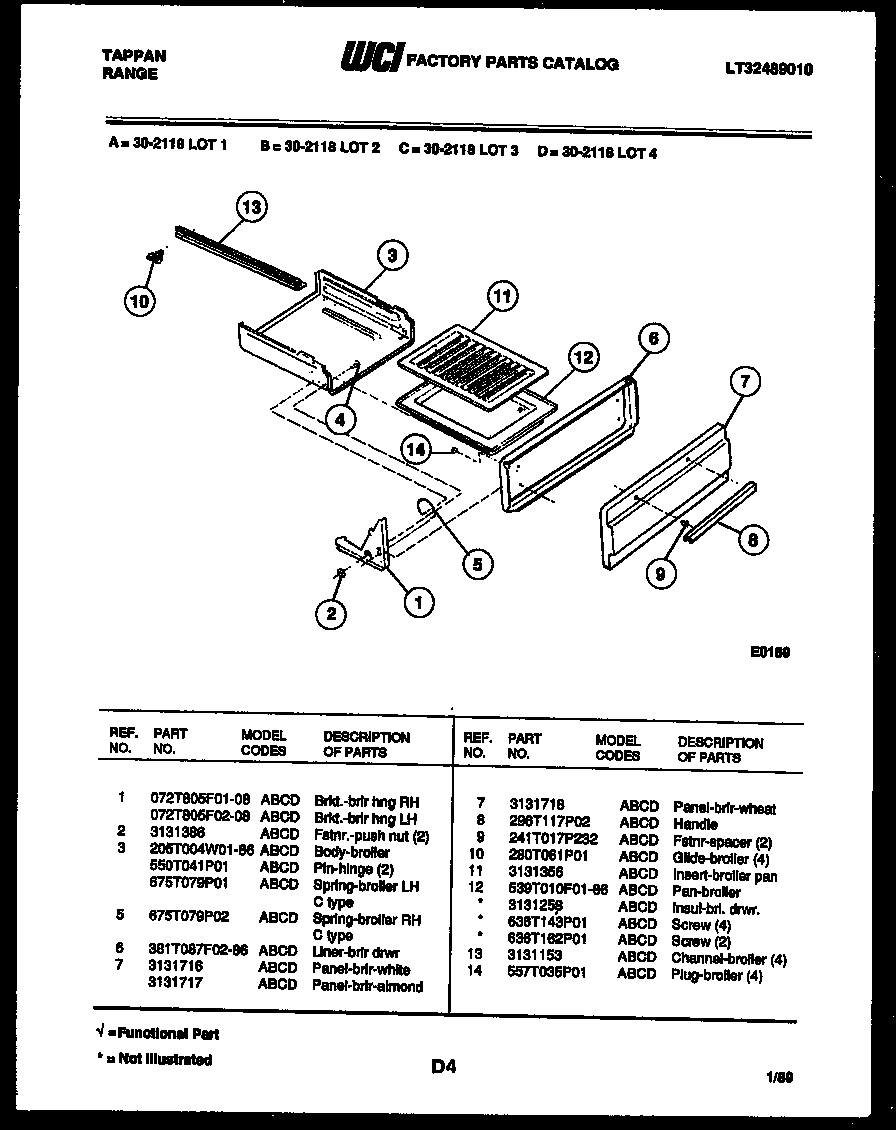

30-2118-66-04 04 – BROILER DRAWER PARTS

30-2118-66-04 04 – BROILER DRAWER PARTS

Written by

in

30-2118-66-04 04 – BROILER DRAWER PARTS

Products

PositionProduct
1AWCI 072T805F02-08
1WCI 072T805F01-08
2WCI 3131386
3APIN, HINGE (2)
3BSPRING-BROILR LH C-TYPE
3BODY, BROILER
5SPRING-BROILR RH C-TYPE
6LINER (BROILR DRWR)
7PANEL BROILR (WHEAT)
8WCI 296T117P02
9FSTNR-SPACER (2)
10GLIDE – BROILER
11WCI 3131356
12PAN, BROILER
12CSCREW PNL ASSY (2)
12AINSUL, BRL, DRWR (NON-ILLUSTRATED)
12B5303300265 Frigidaire Oven Screw
13WCI 3131153
14WCI 557T035P01
