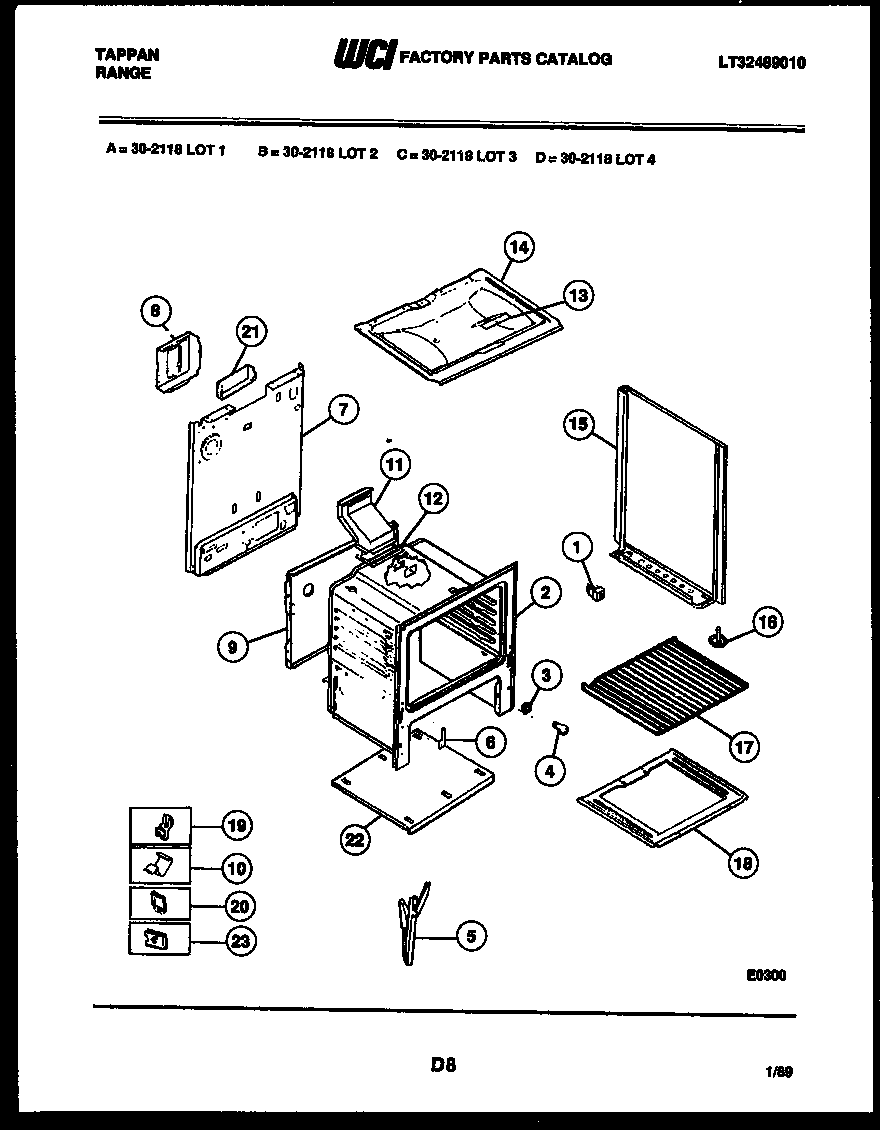

30-2118-66-04 07 – BODY PARTS

30-2118-66-04 07 – BODY PARTS

Written by

in

30-2118-66-04 07 – BODY PARTS

Products

PositionProduct
*20653COVER FRNT MAIN (NON-ILLUSTRATED)
*20654316282700 Frigidaire Oven Screw
1WCI 665T188P02
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3131567
8WCI 665T421F02-18
9SHIELD-BACKGUARD,REAR WALL
10CLIP, WIRE
11WCI 252T048W01-18
12316542102 Frigidaire Flue Gasket
13WCI 3131101
14WCI 095T030F02-86
15PNL B/S-LH (WHEAT)
15APNL B/S-RH (WHEAT)
16WCI 636M004P01
17316067902 Frigidaire Oven Rack
18AWCI 3131201
18WCI 058T036F02-86
18BWCI 3131246
19AFSTNR-POWER CORD (NON-ILLUSTRATED)
195303284616 Frigidaire Range Bulb Clip Thermostat
20316539800 Frigidaire Oven Retainer
21A3131903 Frigidaire Door/Drawer Bumper
21WCI 3131348
21B316064600 Frigidaire Oven Support
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 3131180
22APLATE-OV. LT MTG (NON-ILLUSTRATED)
233203010 Frigidaire Clip
