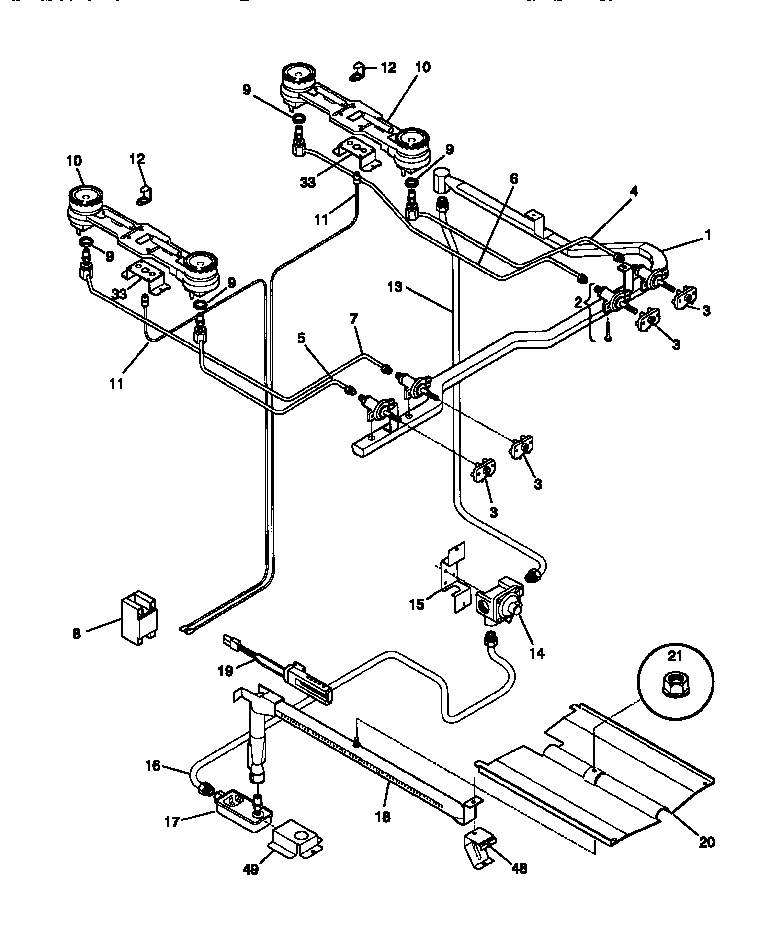

30-2132-00-04 03 – BURNER

Products

Position	Product
1	WCI 316066201
2	VALVE, TOP, 2 POS, (4)
2A	316048200 Frigidaire Oven Screw
3	WCI 316032001
3A	SWITCH HARNESS TERMINAL KIT
4	WCI 316051400
5	WCI 316051401
6	WCI 316051402
7	WCI 316051403
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9	NUT, SPECIAL
10	WCI 316057100
11A	IGNITER-TOP BURNER, BASE, 33``
11	IGNITER-TOP BURNER, BASE, (2)
12	3016993 Frigidaire Oven Retainer
13	WCI 316065005
14A	316021104 Frigidaire Oven Screw Assembly
14	5303935125 Frigidaire Pressure Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	WCI 3131439
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
33	BRACKET BURNER MTG
48	WCI 3018603
49	BRKT.-VALVE
