30-2132-00-04 04 – BODY

30-2132-00-04 04 – BODY

Written by

in

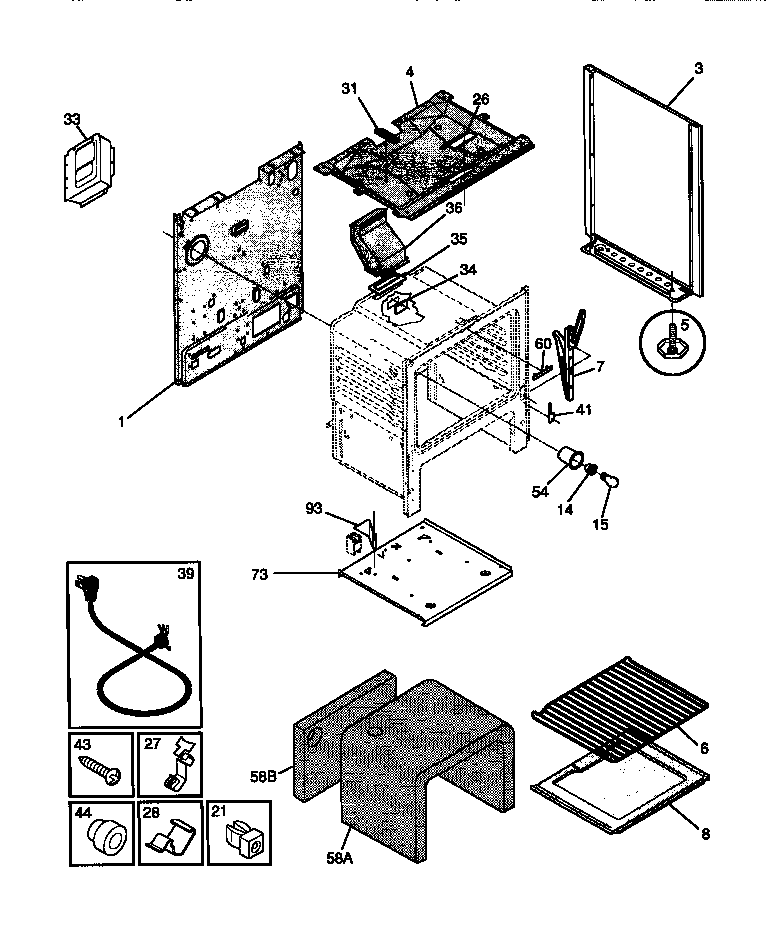

30-2132-00-04 04 – BODY

Products

PositionProduct
*58366WCI 316001219
*58365WCI 5303281584
*58363WCI 316056500
*58364WCI 5303280614
*58362WCI 08067961
1WCI 316029410
3AWCI 316081005
3WCI 316081004
4WCI 3011597
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5AWCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7A3203010 Frigidaire Clip
7Hinge,oven door ,(2)
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
