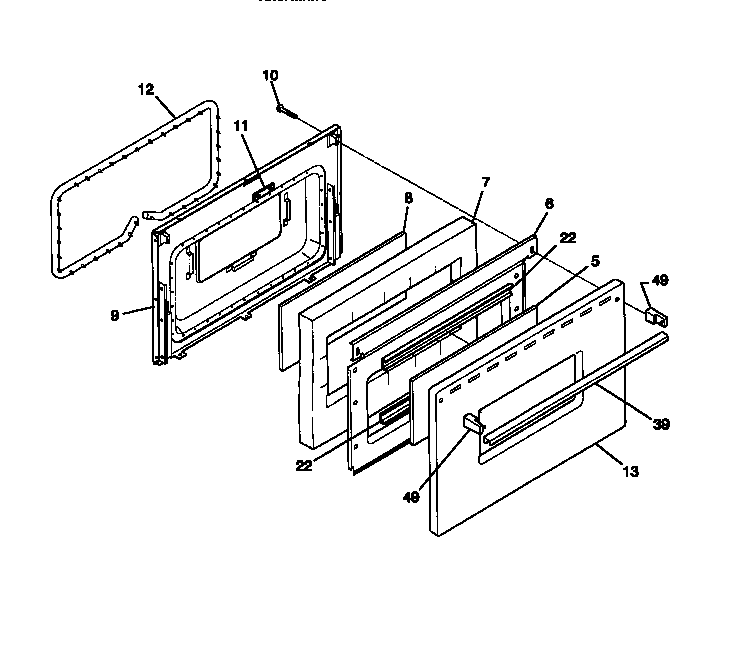

30-2132-00-04 06 – DOOR

30-2132-00-04 06 – DOOR

Written by

in

30-2132-00-04 06 – DOOR

Products

PositionProduct
*58370SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*58372WCI 5303269859
*583715303300265 Frigidaire Oven Screw
*583755303285179 Frigidaire Oven Door Screw
*583735303271648 Frigidaire Oven Screw
*58369WCI 316071600
*58376131243700 Frigidaire Screw
*58374WCI 5303280311
5WCI 3051149
6SHIELD-INSULATION
7WCI 316076401
8WCI 316050303
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303202011 Frigidaire Door Seal
13PANEL, OVEN DOOR, WHITE
22Retainer,glass ,(2) ,angle
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
60COVER-OVEN FRONT
