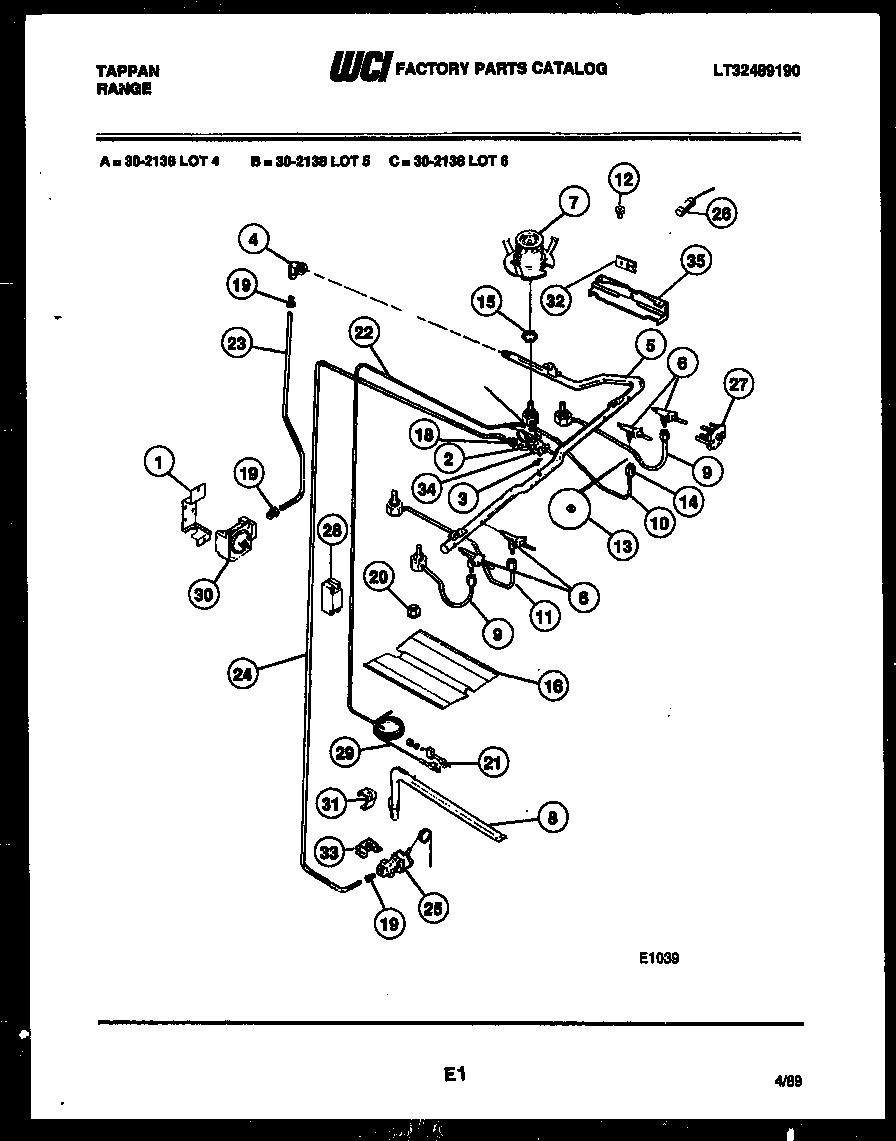

30-2138-00-04 06 – BURNER PARTS

30-2138-00-04 06 – BURNER PARTS

Written by

in

30-2138-00-04 06 – BURNER PARTS

Products

PositionProduct
1WCI 072T850F01
2WCI 722T073P01
3WCI 003T039P01
4ELBOW 1/2 NP TO 9/16-24
5WCI 439T055P07
6WCI 3017542
7BURNER TOP (4)
8WCI 3131571
9BURNER TUBE-RF & LF
10WCI 3011569
11WCI 3011570
12WCI 3051420
13WCI 3012358
14NUT COMPRESSN (4)
15NUT, SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
21PILOT, OVEN
22TUBE, OVEN PILOT, 3/16
23TUBE-REGUL TEE
24WCI 750T085H13
25WCI 3131405
26IGNITER-TOP BURNR (4)
27SWITCH-IGNITER (4)
285303200332 Frigidaire Oven Module
29IGNITER-ELECTRODE OVEN
30CONTROL, REGULATOR
31WCI 3018603
32RETAINER ELECTROS
34WCI 695T220P01
35WCI 136T355W03
