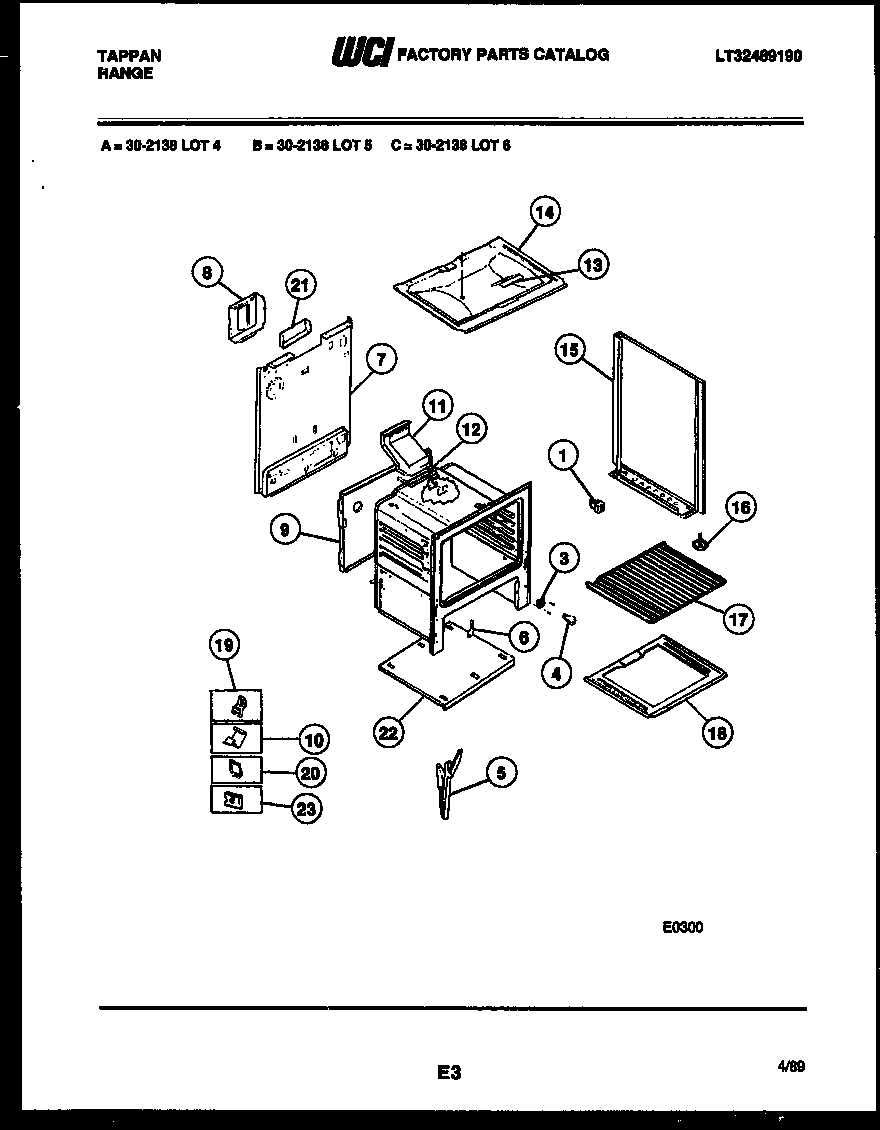

30-2138-00-05 07 – BODY PARTS

Products

Position	Product
*20746	WCI 3015371
*20746	COVER-BURNER BOX
*20746	316282700 Frigidaire Oven Screw
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
6A	5304515659 Frigidaire Oven Power Cord
7	WCI 3131567
8	WCI 3131660
10	CLIP-WIRE
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	WCI 3131101
14	WCI 3011597
15	B/S-RH-(WHITE)
15A	B/S-LH-(WHITE)
16	SCREW-LEVELING
17	316067902 Frigidaire Oven Rack
18A	WCI 3131201
18B	WCI 3131246
18	BTTM-OVEN
19A	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
19	5303284616 Frigidaire Range Bulb Clip Thermostat
20	316539800 Frigidaire Oven Retainer
21B	316064600 Frigidaire Oven Support
21A	3131903 Frigidaire Door/Drawer Bumper
21	WCI 3131348
22	WCI 3131180
22A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
23	3203010 Frigidaire Clip
