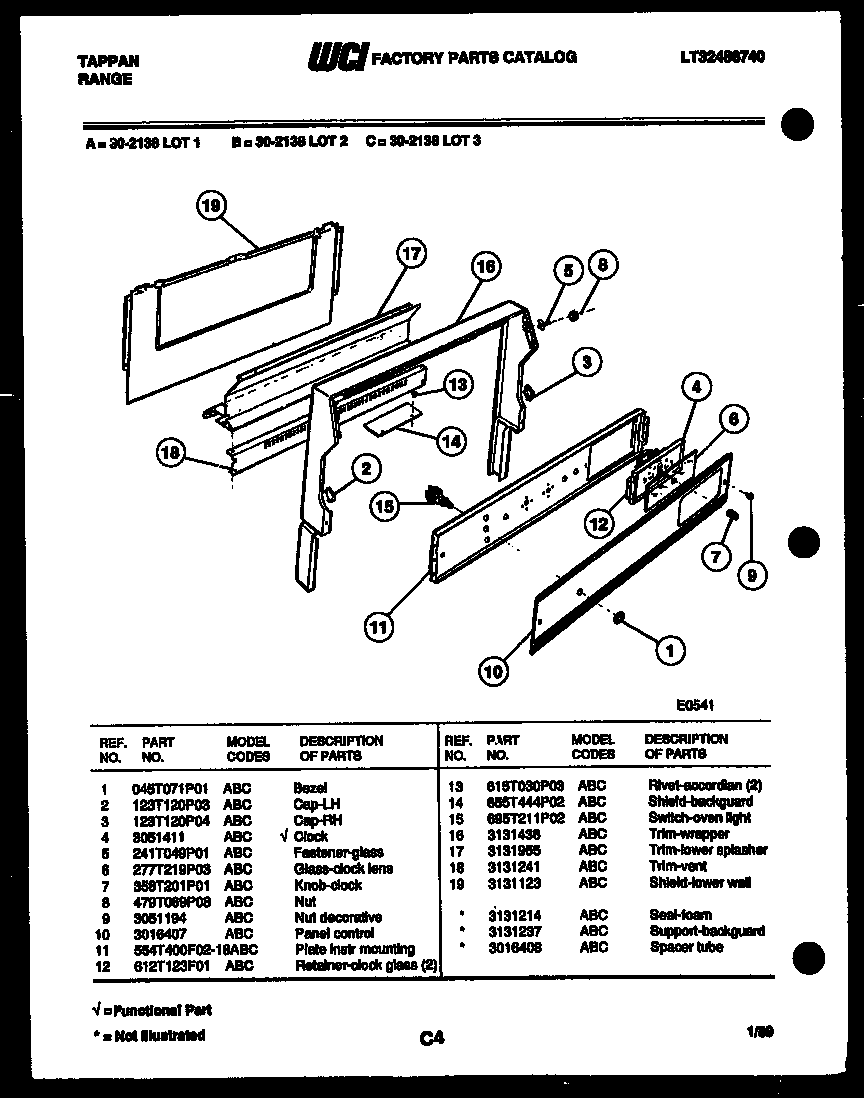

30-2138-23-01 02 – BACKGUARD

Products

Position	Product
*15618	SEAL, FOAM (4)
*15618	SUPPORT-BACKGUARD (2)
*15618	WCI 3016408
1	WCI 045T071P01
2	WCI 123T120P03
3	WCI 123T120P04
4	WCI 3051411
5	FSTNR-GLASS(2)
6	GLASS-CLOCK
7	WCI 358T201P01
8	NUT (10-24) (NON-ILLUSTRATED)
9	NUT - DECOR (2)
10	WCI 3016407
11	PLATE INSTRUMENT MOUNTING
12	RETAINR-CLOCK LENS (2)
13	RIVET ACCORDIAN (NON-ILLUSTRATED)
14	SHIELD-BACKGUARD (NON-ILLUSTRATED)
15	SWITCH-OV LT
16	WCI 3131436
17	TRIM-SPLASHER
18	WCI 3131241
19	SHIELD-BACKGUARD,REAR WALL
