30-2138-23-02 07 – BURNER, MANIFOLD AND GAS CONTROL

30-2138-23-02 07 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

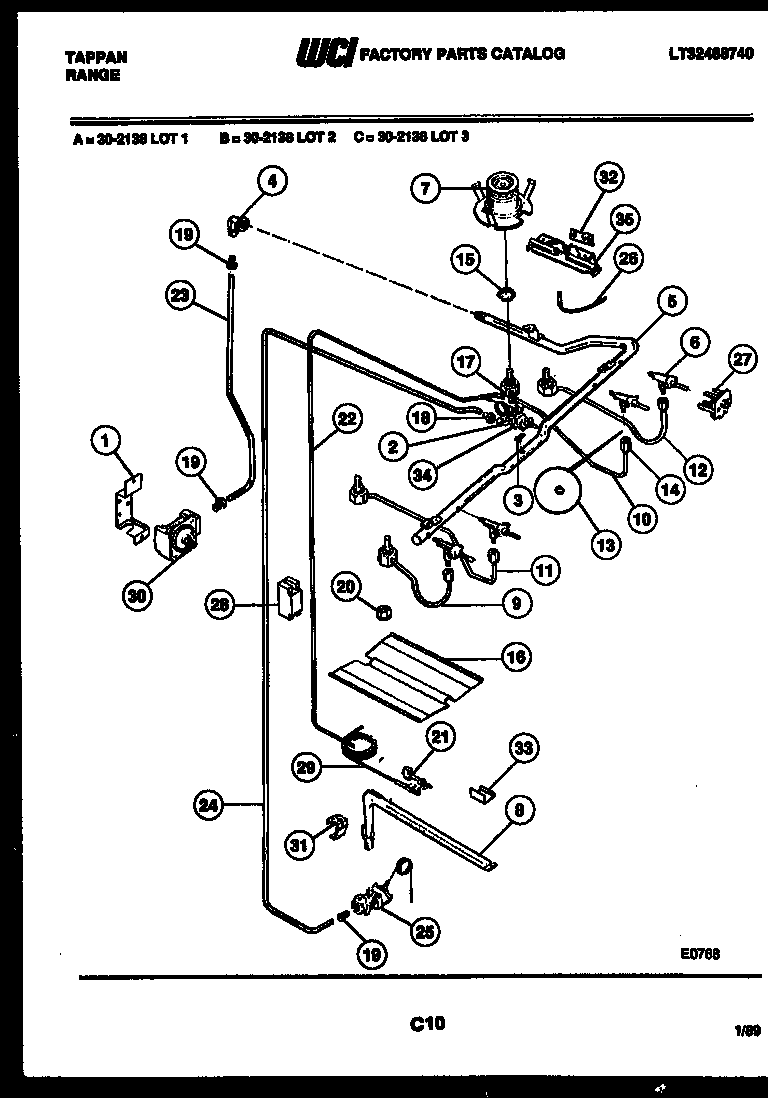

30-2138-23-02 07 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*15626WCI 3051420
1WCI 072T850F01
2WCI 722T073P01
3WCI 003T039P01
4ELBOW 1/2 NP TO 9/16-24
5WCI 439T055P07
6WCI 3017542
7WCI 079T032S02
8WCI 3131571
9WCI 079T033H01
10WCI 079T033H02
11WCI 079T033H03
12WCI 079T033H04
13WCI 247T074P01
14NUT COMPRESSN (4)
15NUT SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
21PILOT, OVEN
23TUBE-REGUL TEE
24WCI 750T085H13
25WCI 3131405
26IGNITER-TOP BURNR (4)
27IGN.-SWITCH
285303200332 Frigidaire Oven Module
29IGNITER-ELECT.
30CONTROL, REGULATOR
31WCI 072T821F01
32RETAINER ELECTROS
33COVER PLATE (NON-ILLUSTRATED)
34WCI 695T220P01
35WCI 136T355W03
