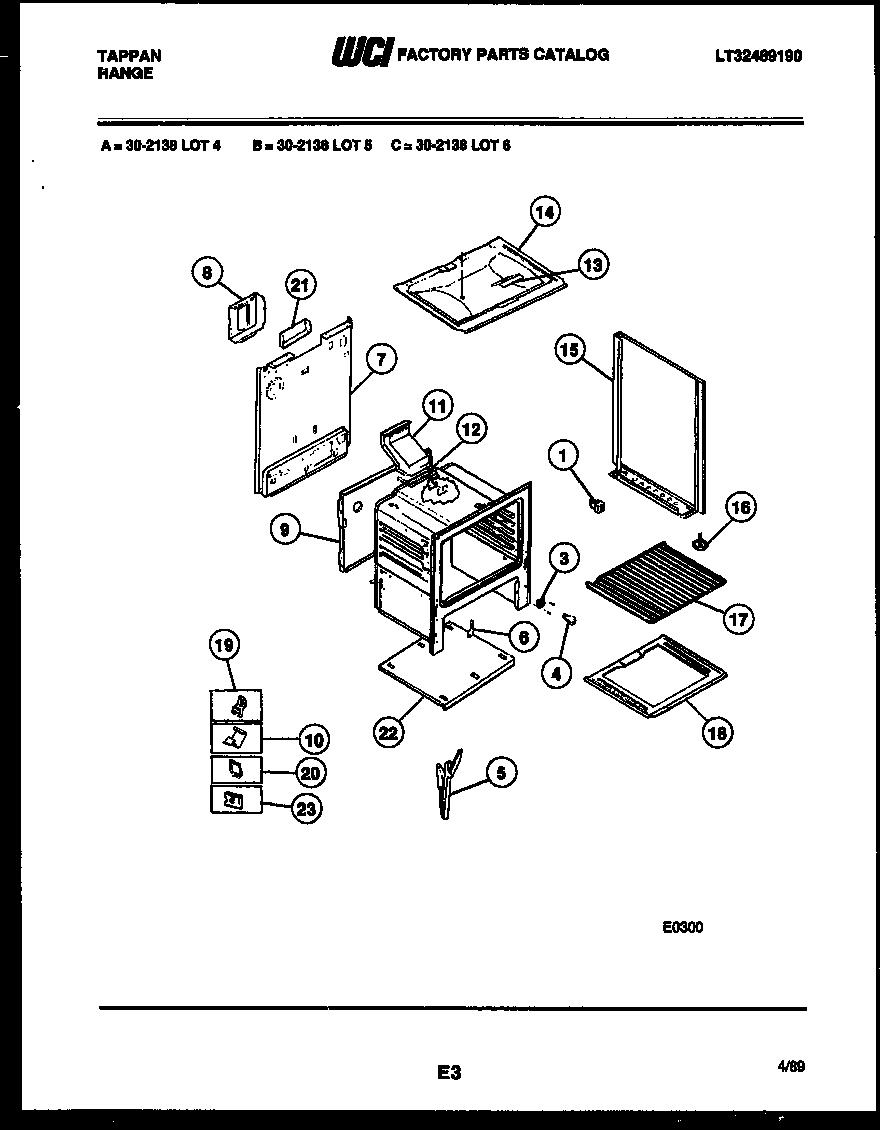

30-2138-66-05 07 – BODY PARTS

30-2138-66-05 07 – BODY PARTS

Written by

in

30-2138-66-05 07 – BODY PARTS

Products

PositionProduct
*20746WCI 3015371
*20746COVER-BURNER BOX
*20746316282700 Frigidaire Oven Screw
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6A5304515659 Frigidaire Oven Power Cord
6WCI 3131570
7WCI 3131567
8WCI 3131660
10CLIP-WIRE
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13WCI 3131101
14WCI 3011597
15APNL B/S-RH (WHEAT)
15PNL B/S-LH (WHEAT)
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18BTTM-OVEN
18AWCI 3131201
18BWCI 3131246
195303284616 Frigidaire Range Bulb Clip Thermostat
19AFSTNR PWR CORD (2) (NON-ILLUSTRATED)
20316539800 Frigidaire Oven Retainer
21B316064600 Frigidaire Oven Support
21A3131903 Frigidaire Door/Drawer Bumper
21WCI 3131348
22APLATE-OV. LT MTG (NON-ILLUSTRATED)
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 3131180
233203010 Frigidaire Clip
