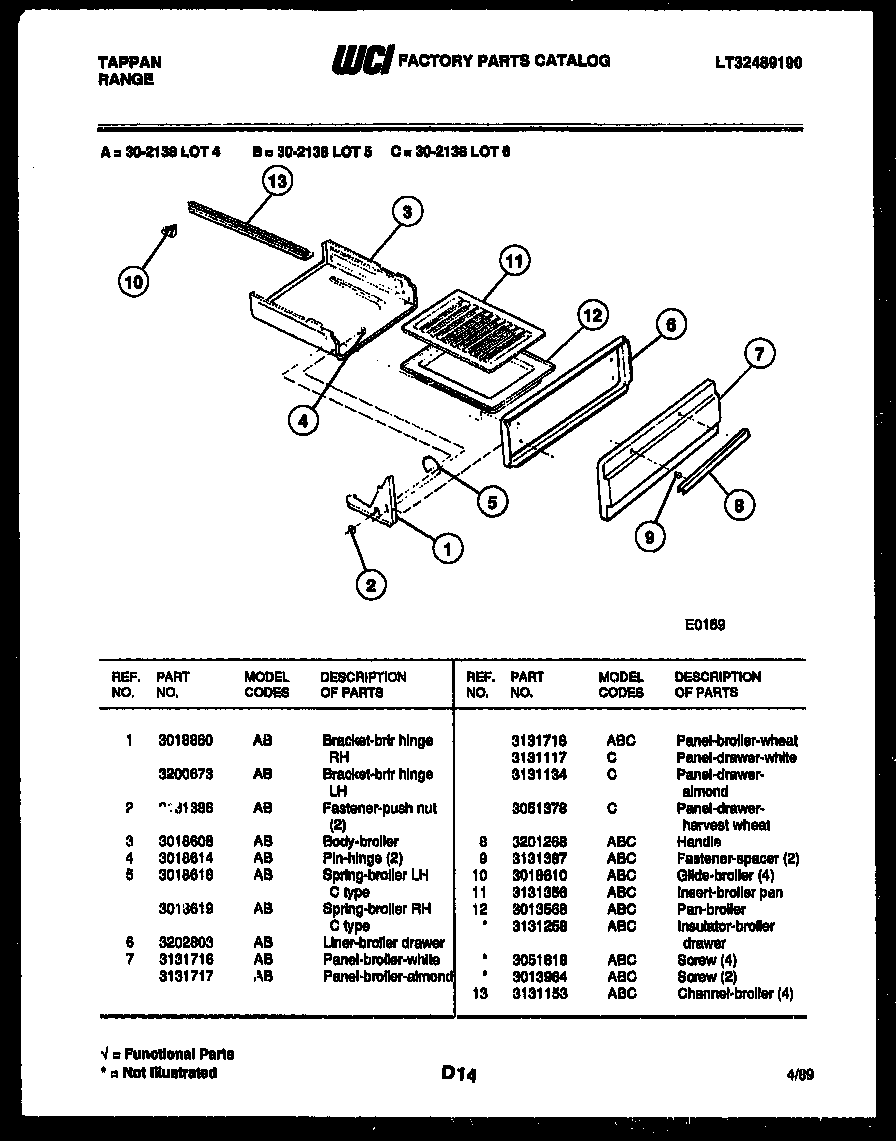

30-2138-66-06 05 – BROILER DRAWER PARTS

Written by

Products

Position	Product
7	PANEL BROILR (WHEAT)
7A	PNL DRAWER WHEAT
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 3131356
12C	SCREW-PNL ASSY (2)
12A	INSUL, BRL, DRWR (NON-ILLUSTRATED)
12B	5303300265 Frigidaire Oven Screw
12	WCI 3013568
13	WCI 3131153
