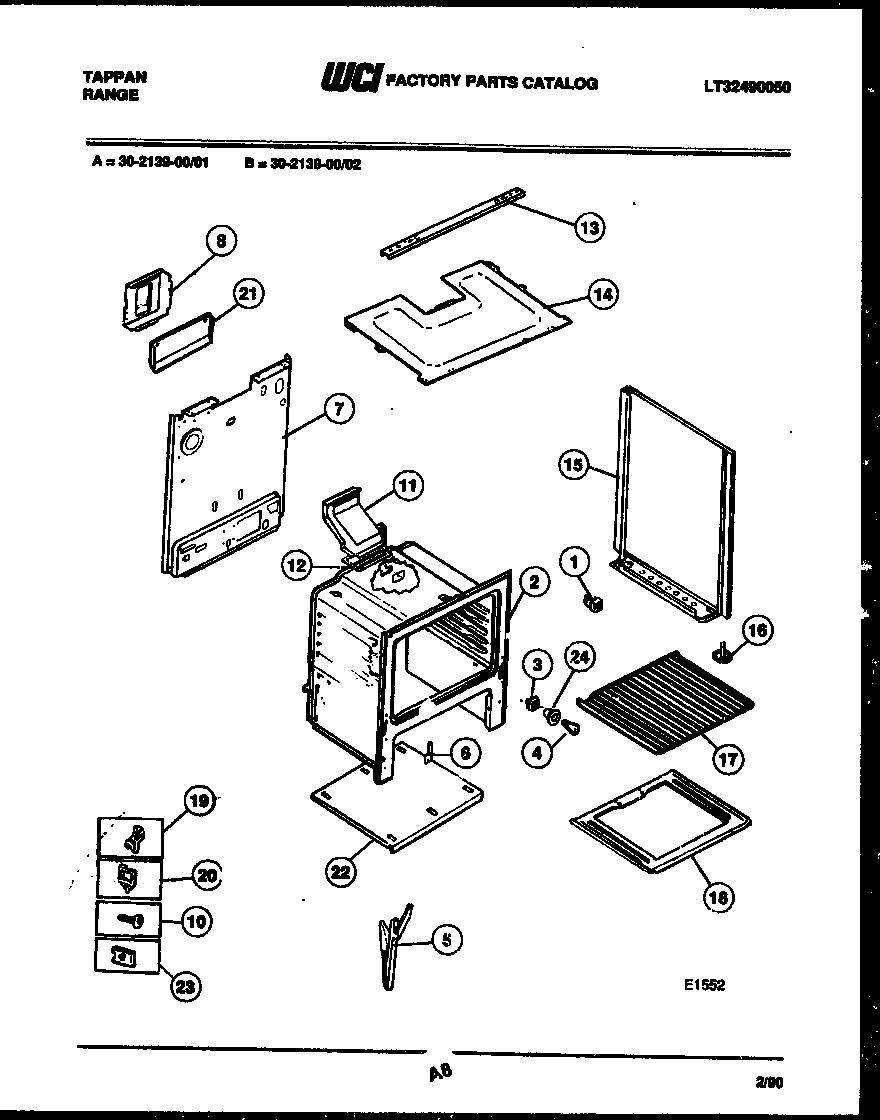

30-2139-00-01 07 – BODY PARTS

Products

PositionProduct
*28422SHIELD-TOP (NON-ILLUSTRATED)
*28422WCI 3131348
*28422ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15APNL-BODYSIDE LH-ALMOND
15APNL-BODYSIDE LH-WHITE
15PNL-BODYSIDE RH-ALMOND
15PNL-BODYSIDE RH-WHITE
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18AINSULATION, OVEN WRAPPER
18BTTM-OVEN
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
195303284616 Frigidaire Range Bulb Clip Thermostat
19AFSTNR PWR CORD (2) (NON-ILLUSTRATED)
20316539800 Frigidaire Oven Retainer
21A3131903 Frigidaire Door/Drawer Bumper
21SHIELD-FLUE, (NON-ILLUSTRATED)
21B316064600 Frigidaire Oven Support
22ACOVER-IGNITOR
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 3131180
23ACOVER-OVEN FRONT
233203010 Frigidaire Clip
24WCI 3051511
