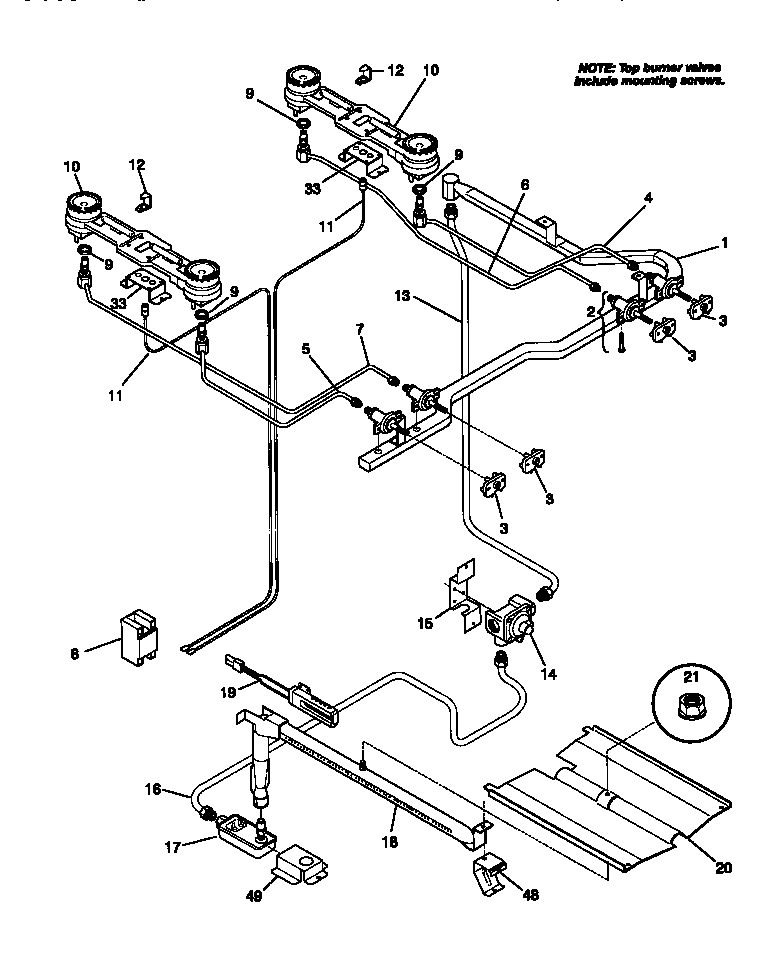

30-2232-23-04 03 – BURNER

30-2232-23-04 03 – BURNER

Written by

in

30-2232-23-04 03 – BURNER

Products

PositionProduct
1WCI 316066201
2VALVE, TOP, 2 POS, (4)
2A316048200 Frigidaire Oven Screw
3WCI 316032001
3ASWITCH HARNESS TERMINAL KIT
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10WCI 316057100
11AIGNITER-TOP BURNER, BASE, 33“
11IGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
13WCI 316065005
14A316021104 Frigidaire Oven Screw Assembly
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
33BRACKET BURNER MTG
48WCI 3018603
49BRKT.-VALVE
