30-2232-23-04 05 – TOP/DRAWER

30-2232-23-04 05 – TOP/DRAWER

Written by

in

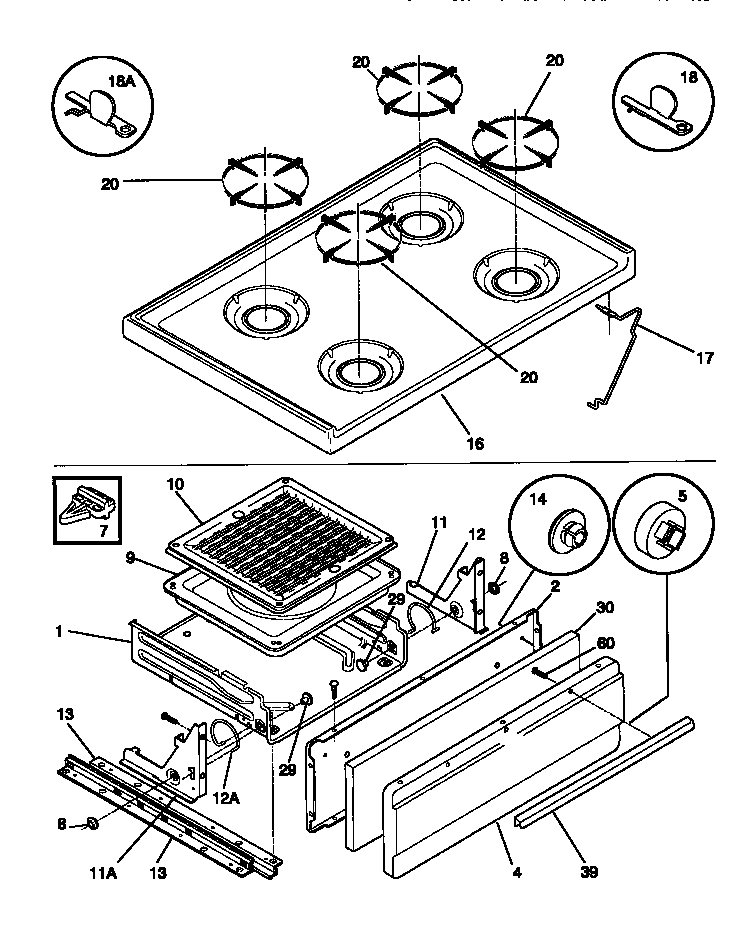

30-2232-23-04 05 – TOP/DRAWER

Products

PositionProduct
*92887WCI 5303281584
1DRAWER-BROILER
2WCI 3202803
4WCI 316056206
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11ABRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303200658
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20316055800 Frigidaire Oven Grate
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, BRUSHED CHROME
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
