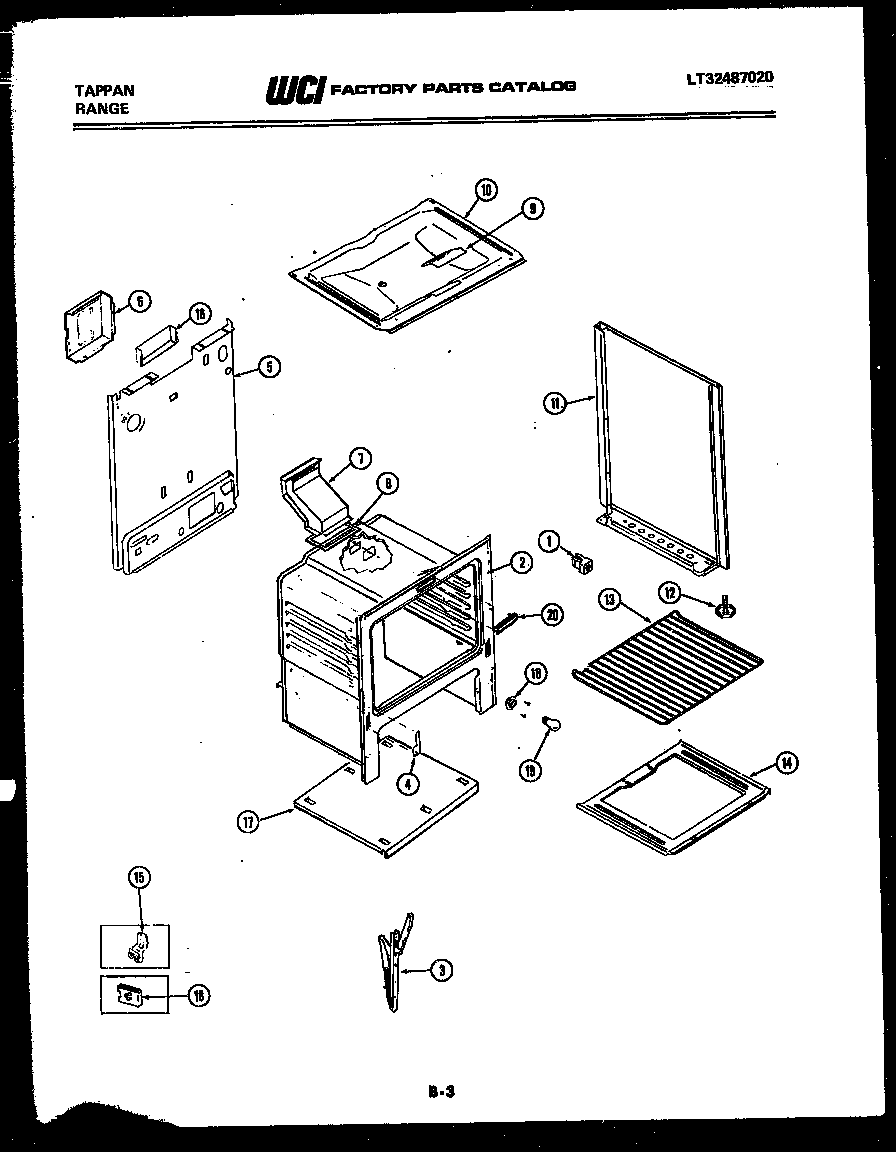

30-2237-66-02 07 – BODY PARTS

Products

Position	Product
*52910	316282700 Frigidaire Oven Screw
1	WCI 665T188P02
3	CHANL-DR HNG (2)
4	WCI 3131570
5	WCI 3131567
6	WCI 655T421F02-18
7	WCI 3131503
8	316542102 Frigidaire Flue Gasket
9	WCI 3131101
10	WCI 095T030F02-86
11	PNL. B/S (LH WEAT)
11	PNL. B/S (RH WEAT)
12	WCI 636M004P01
13	316067902 Frigidaire Oven Rack
14B	WCI 3131246
14A	WCI 3131201
14	WCI 058T036F02-86
15	5303284616 Frigidaire Range Bulb Clip Thermostat
15B	316064600 Frigidaire Oven Support
15A	3131903 Frigidaire Door/Drawer Bumper
16	WCI 3131180
17	3203010 Frigidaire Clip
17A	5304534000 Frigidaire Cord
17B	FASTENER-POWER CORD (NON-ILLUSTRATED)
18	316116400 Frigidaire Oven Light Socket
19	316538904 Frigidaire Oven Lamp Light
20	COVER FRNT MAIN (NON-ILLUSTRATED)
