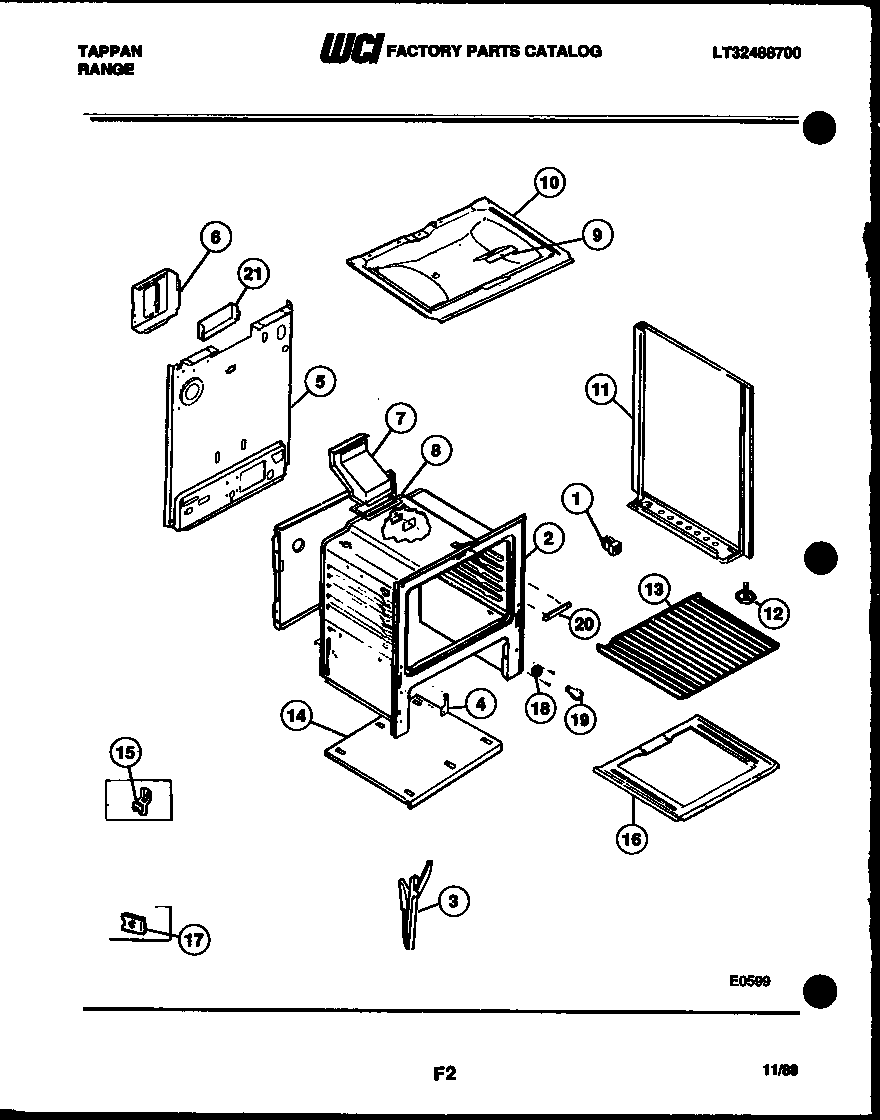

30-2238-00-01 07 – BODY PARTS

Products

Position	Product
1	SPACER-BDYSDE (8)
3	CHANL-DR HNG (2)
4	WCI 3131570
5	WCI 3131567
6	WCI 655T421F02-18
7	WCI 3131503
8	316542102 Frigidaire Flue Gasket
9	WCI 3131101
10	WCI 095T030F02-86
11	PNL. B/S (RH WHITE)
11A	PNL. B/S (LH WHITE)
12	WCI 636M004P01
13	316067902 Frigidaire Oven Rack
14	WCI 058T036F02-86
14A	WCI 3131201
14B	WCI 3131246
15	5303284616 Frigidaire Range Bulb Clip Thermostat
15A	3131903 Frigidaire Door/Drawer Bumper
15B	316064600 Frigidaire Oven Support
16	WCI 3131180
17	3203010 Frigidaire Clip
17A	5304534000 Frigidaire Cord
17B	FASTENER-POWER CORD (NON-ILLUSTRATED)
18	316116400 Frigidaire Oven Light Socket
19	316538904 Frigidaire Oven Lamp Light
20	COVER FRNT MAIN (NON-ILLUSTRATED)
20A	316282700 Frigidaire Oven Screw
21	WCI 3131343
