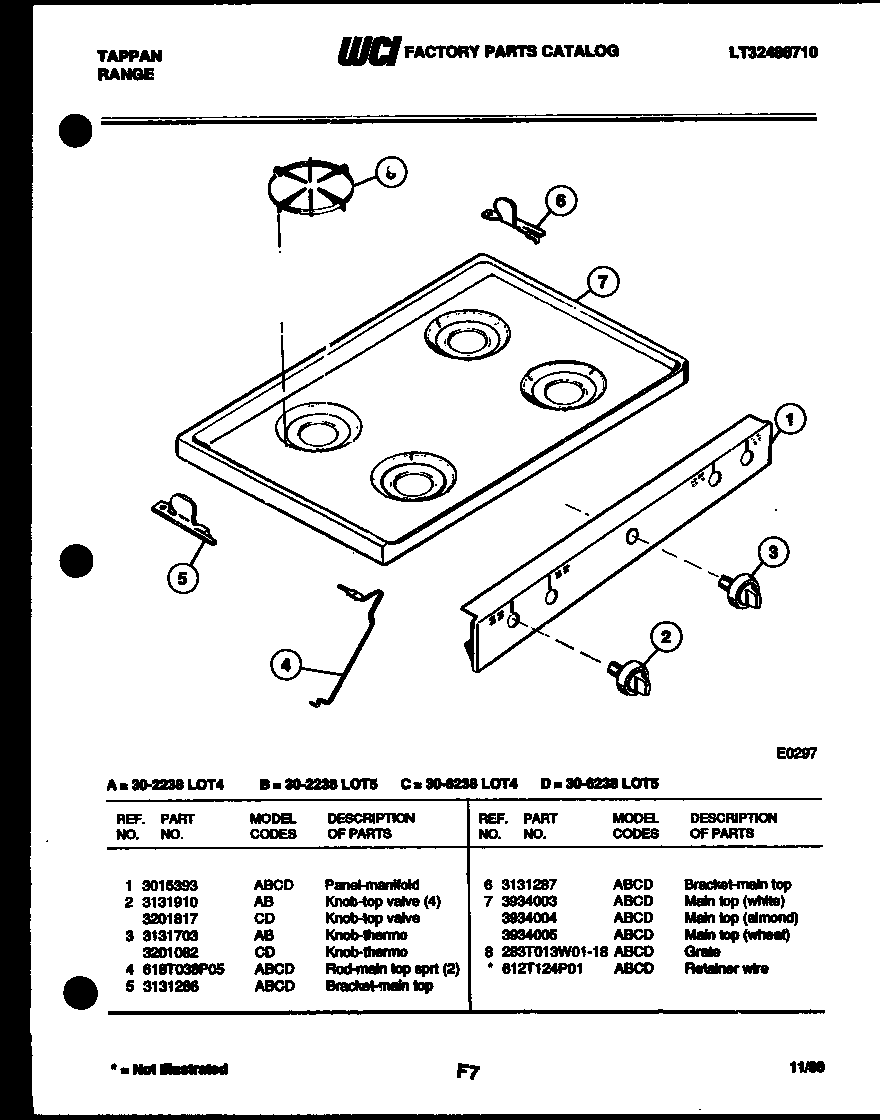

30-2238-00-05 03 – COOKTOP PARTS

30-2238-00-05 03 – COOKTOP PARTS

Written by

in

30-2238-00-05 03 – COOKTOP PARTS

Products

Position	Product
*19993	WCI 612T124P01
1	PANEL-MANIFOLD
2	KNOB-TOP VALVE (4)
3	KNOB-THERMOSTAT
4	ROD-MAIN TOP SUPT.
5	BRKT MAIN TOP HNG LH
6	BRKT MAIN TOP HNG RH
7	PNL MAIN TOP-WHITE
8	316055800 Frigidaire Oven Grate
