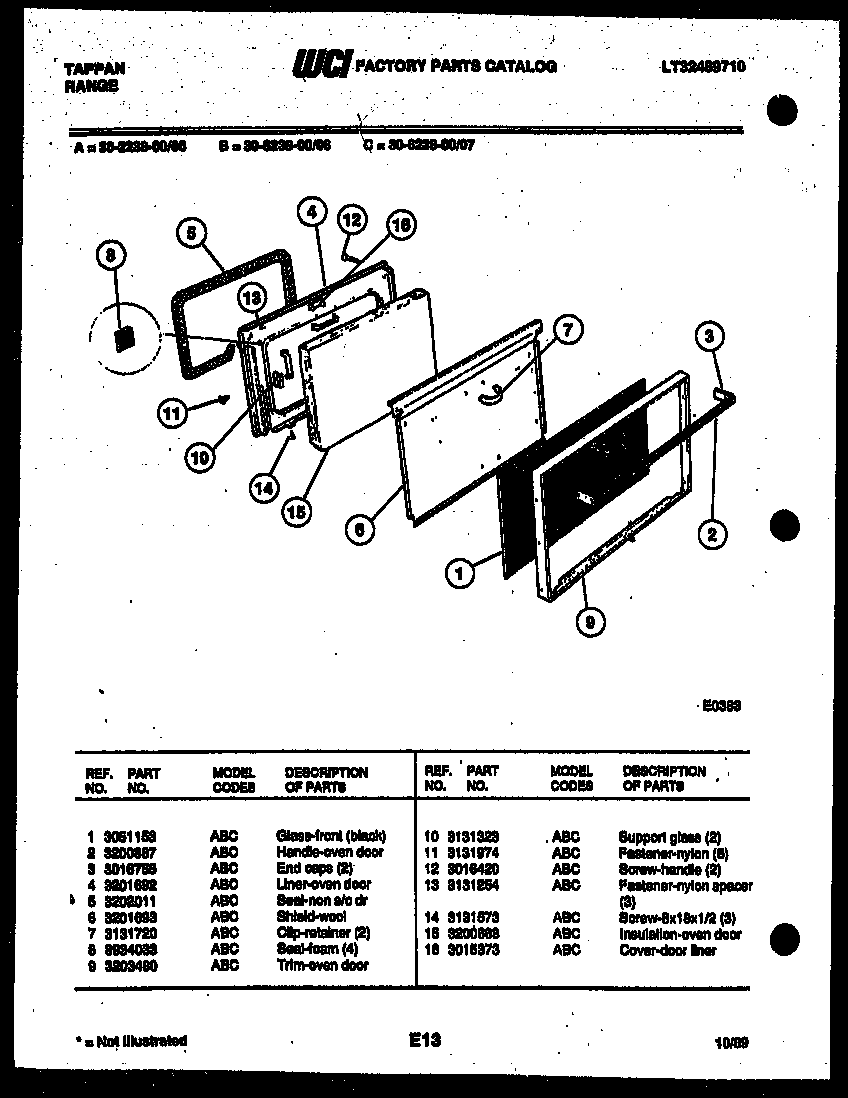

30-2238-23-06 04 – DOOR PARTS

Written by

Products

Position	Product
1	GLASS-FRONT BLACK
2	HANDLE-OVEN DOOR
3	316137003 Frigidaire Range / Cooktop End Cap
4	WCI 3201692
5	5303202011 Frigidaire Door Seal
6	WCI 3201693
7	CLIP-RETAINING
8	SEAL, FOAM (4)
9	WCI 3203480
10	SUPPORT, GLASS
11	FSTNR. SPACER (6)
12	SCREW – HANDLE (2)
13	CLIP
14	SCREW DOOR MTG
15	INSULATION-OVEN DOOR
16	WCI 3015373
