30-2238-23-06 07 – BODY PARTS

30-2238-23-06 07 – BODY PARTS

Written by

in

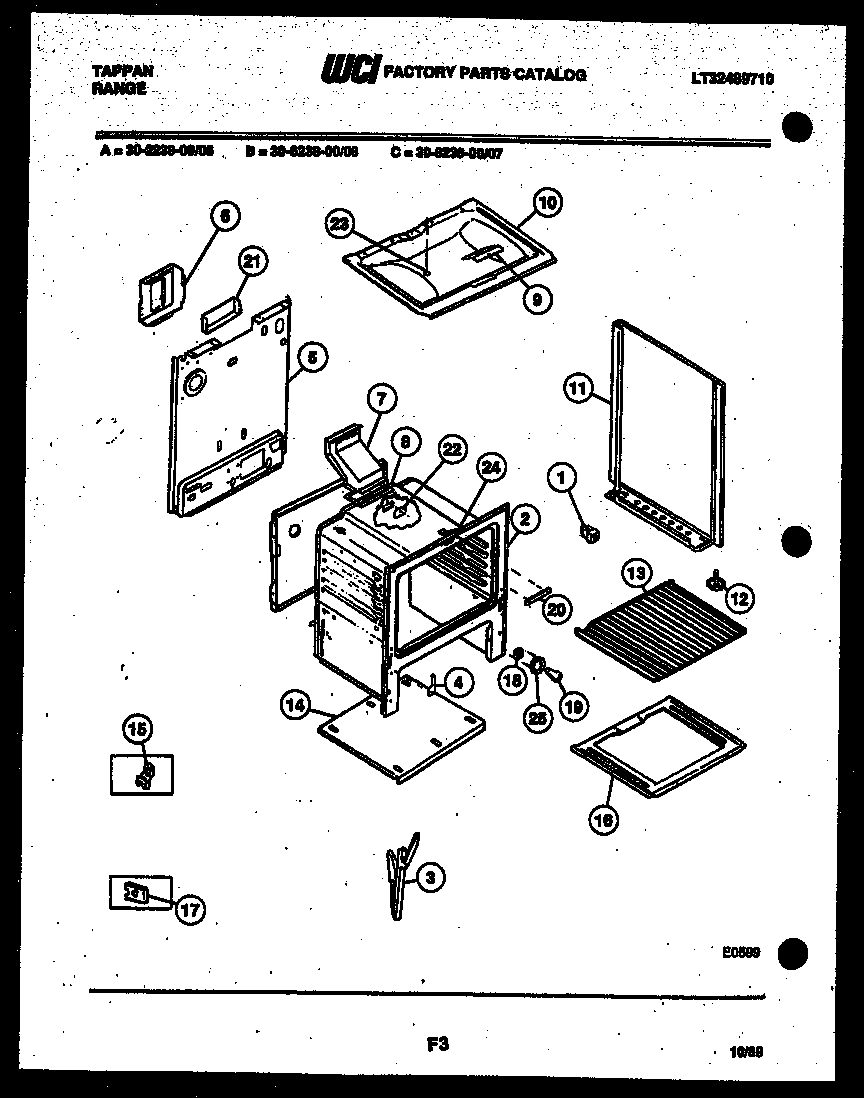

30-2238-23-06 07 – BODY PARTS

Products

PositionProduct
*39732ANTI-TIP KIT (NOT ILLUSTRATED)
3CHANL-DR HNG (2)
4WCI 3131570
5WCI 3131567
6WCI 3131660
7WCI 3131904
8316542102 Frigidaire Flue Gasket
9WCI 3131101
10WCI 3011597
11APNL B/S-RH (ALMOND)
11PNL B/S-LH (ALMOND)
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14BWCI 3131246
14AINSULATION, OVEN WRAPPER
15B316064600 Frigidaire Oven Support
15A3131903 Frigidaire Door/Drawer Bumper
155303284616 Frigidaire Range Bulb Clip Thermostat
16WCI 3131180
17A5304515659 Frigidaire Oven Power Cord
173203010 Frigidaire Clip
17BFSTNR PWR CORD (2) (NON-ILLUSTRATED)
18316116400 Frigidaire Oven Light Socket
19BULB
20COVER FRNT MAIN (NON-ILLUSTRATED)
20A316282700 Frigidaire Oven Screw
21WCI 3131348
22ACOVER-POWER CORD, (NON-ILLUSTRATED)
22COVER-IGNITOR
23WCI 3015371
24APLATE-OV. LT MTG (NON-ILLUSTRATED)
24COVER-BURNER BOX
