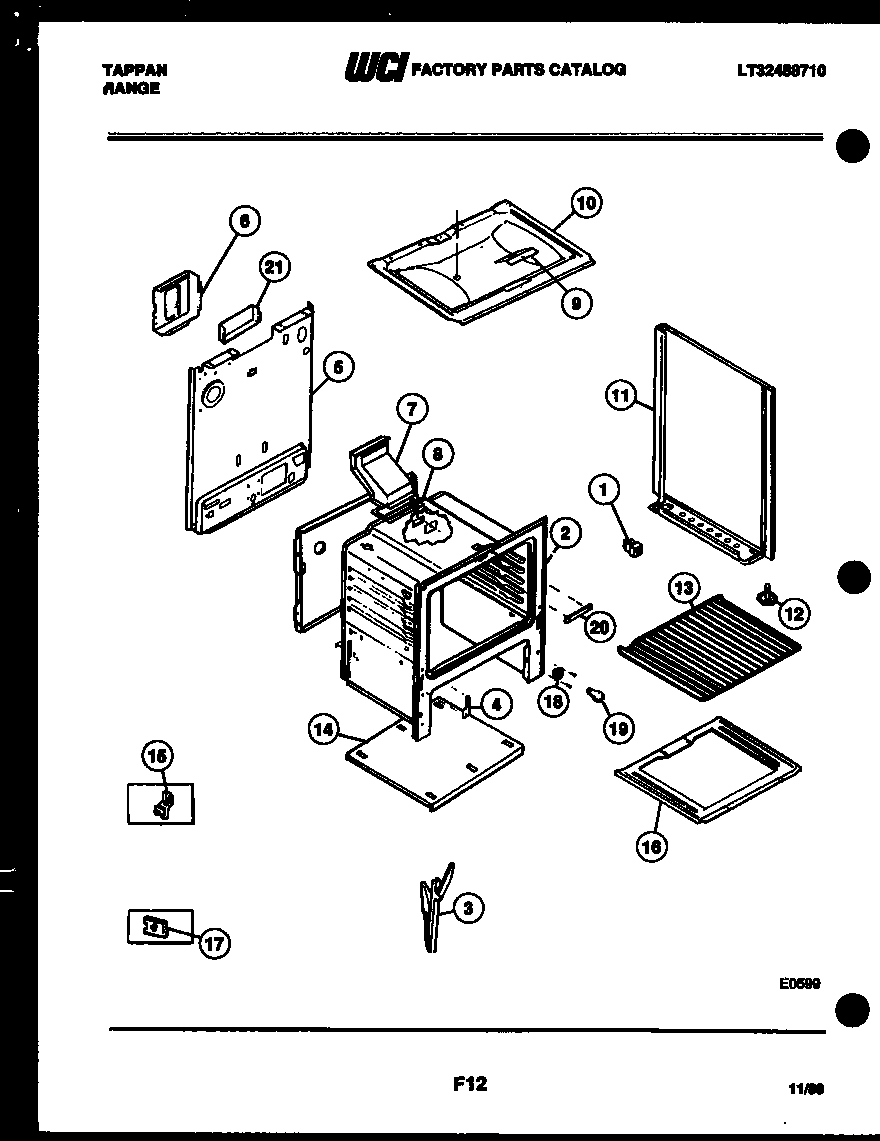

30-2238-66-05 07 – BODY PARTS

30-2238-66-05 07 – BODY PARTS

Written by

in

30-2238-66-05 07 – BODY PARTS

Products

PositionProduct
1A5304534000 Frigidaire Cord
1SPACER-BDYSDE (8)
3CHANL-DR HNG (2)
4WCI 3131570
5WCI 3131567
6WCI 655T421F02-18
7WCI 3131503
8316542102 Frigidaire Flue Gasket
9WCI 3131101
10WCI 095T030F02-86
11APNL B/S-RH (WHEAT)
11PNL B/S-LH (WHEAT)
12WCI 636M004P01
13316067902 Frigidaire Oven Rack
14BWCI 3131246
14AWCI 3131201
14WCI 058T036F02-86
15B316064600 Frigidaire Oven Support
155303284616 Frigidaire Range Bulb Clip Thermostat
15A3131903 Frigidaire Door/Drawer Bumper
16WCI 3131180
173203010 Frigidaire Clip
17BFASTENER-POWER CORD (NON-ILLUSTRATED)
18316116400 Frigidaire Oven Light Socket
19316538904 Frigidaire Oven Lamp Light
20COVER FRNT MAIN (NON-ILLUSTRATED)
20A316282700 Frigidaire Oven Screw
21WCI 3131348
