30-2238-66-06 02 – BACKGUARD

30-2238-66-06 02 – BACKGUARD

Written by

in

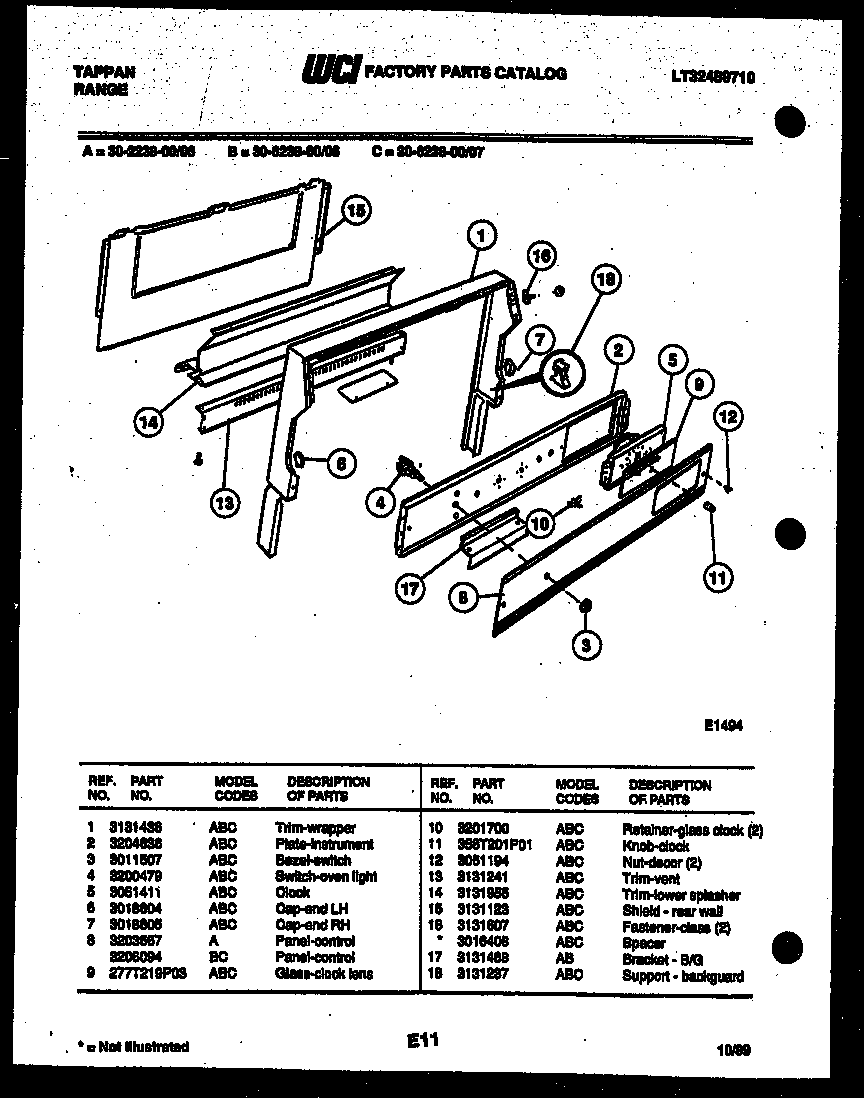

30-2238-66-06 02 – BACKGUARD

Products

PositionProduct
1WCI 3131436
2WCI 3204636
3BEZEL – SWITCH (2)
4WCI 3200479
5WCI 3051411
6CAP-LH
7CAP-RH
8WCI 3203567
9GLASS-CLOCK
10RETAINER, CLOCK GLASS, (2)
11WCI 358T201P01
12NUT – DECOR (2)
13WCI 3131241
14TRIM-SPLASHER
15SHIELD-BACKGUARD,REAR WALL
16FASTENER, GLASS (2)
16AWCI 3016408
17WCI 3131468
18SUPPORT-BACKGUARD (2)
