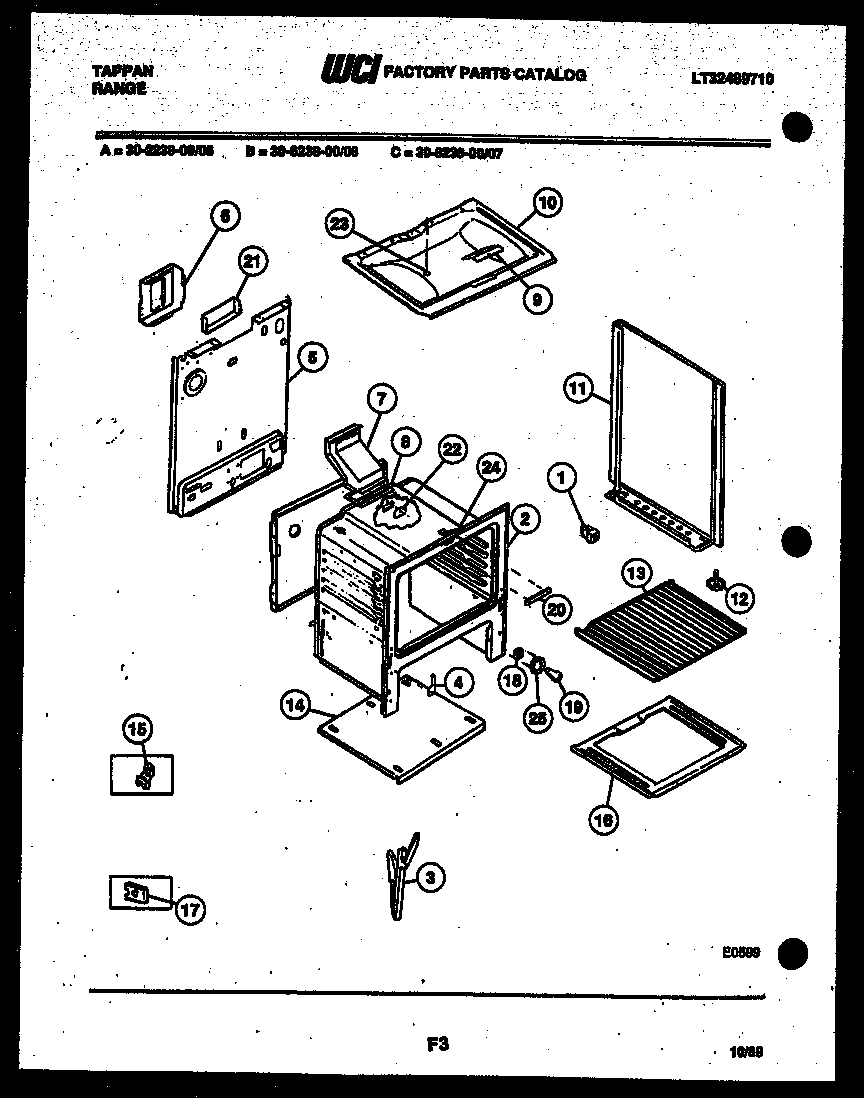

30-2238-66-06 07 – BODY PARTS

Products

Position	Product
*39732	ANTI-TIP KIT (NOT ILLUSTRATED)
3	CHANL-DR HNG (2)
4	WCI 3131570
5	WCI 3131567
6	WCI 3131660
7	WCI 3131904
8	316542102 Frigidaire Flue Gasket
9	WCI 3131101
10	WCI 3011597
11A	PNL B/S-RH (WHEAT)
11	PNL B/S-LH (WHEAT)
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14A	INSULATION, OVEN WRAPPER
14	BTTM-OVEN
14B	WCI 3131246
15A	3131903 Frigidaire Door/Drawer Bumper
15B	316064600 Frigidaire Oven Support
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16	WCI 3131180
17A	5304515659 Frigidaire Oven Power Cord
17	3203010 Frigidaire Clip
17B	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
18	316116400 Frigidaire Oven Light Socket
19	BULB
20	COVER FRNT MAIN (NON-ILLUSTRATED)
20A	316282700 Frigidaire Oven Screw
21	WCI 3131348
22A	COVER-POWER CORD, (NON-ILLUSTRATED)
22	COVER-IGNITOR
23	WCI 3015371
24A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
24	COVER-BURNER BOX
