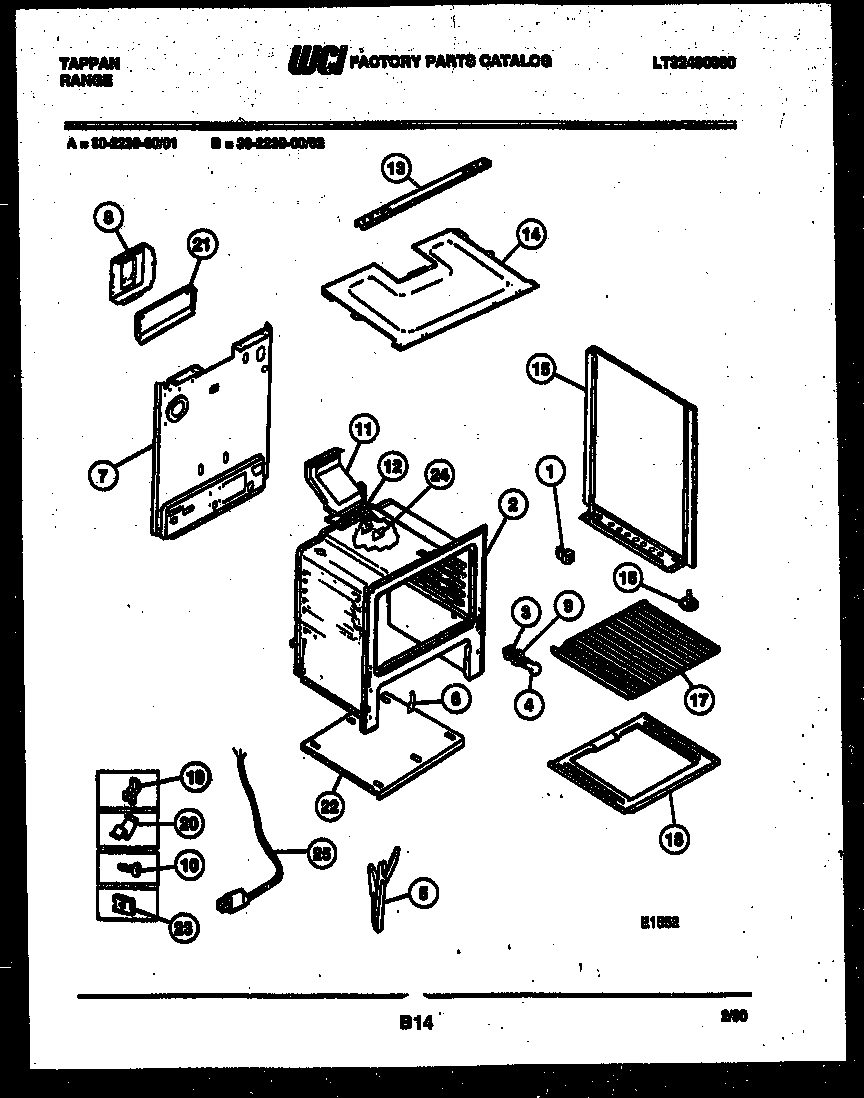

30-2239-00-02 07 – BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHAN-DOOR HINGE (2)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	WCI 3051511
10	316282700 Frigidaire Oven Screw
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	CHANNEL-BURNER BOX
14	BURNER BOX BOTTOM
15	PNL-BODYSIDE RH-ALMOND
15A	PNL-BODYSIDE LH-ALMOND
16	SCREW-LEVELING
17	316067902 Frigidaire Oven Rack
18B	INSUL - OVEN BACK (NON-ILLUSTRATED)
18A	INSULATION, OVEN WRAPPER
18	BTTM-OVEN
19	5303284616 Frigidaire Range Bulb Clip Thermostat
19A	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
20	316539800 Frigidaire Oven Retainer
21B	316064600 Frigidaire Oven Support
21A	3131903 Frigidaire Door/Drawer Bumper
21	WCI 3131348
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
22A	ANTI-TIP KIT (NOT ILLUSTRATED)
22	WCI 3131180
23	3203010 Frigidaire Clip
23A	COVER-OVEN FRONT
24	COVER-IGNITOR
24A	SHIELD-FLUE, (NON-ILLUSTRATED)
24B	SHIELD-TOP (NON-ILLUSTRATED)
25	5304515659 Frigidaire Oven Power Cord
