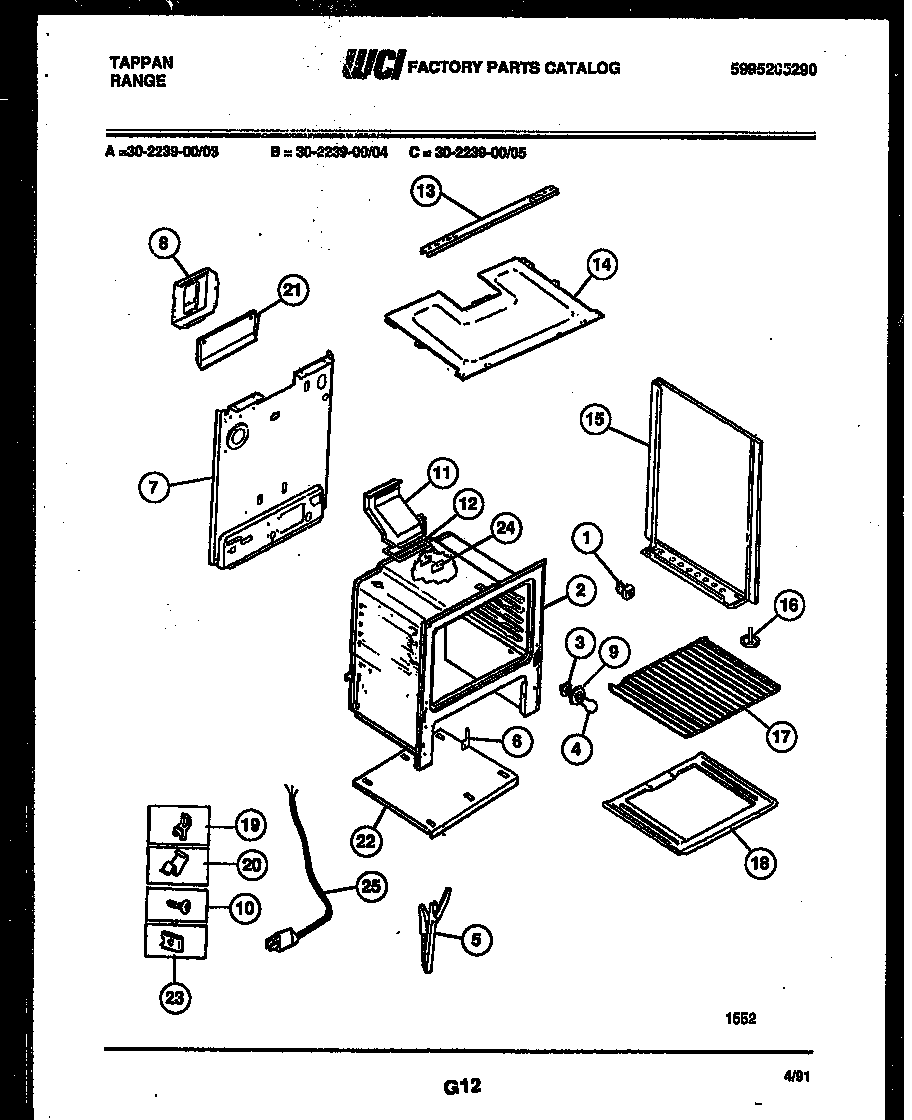

30-2239-00-03 07 – BODY PARTS

Products

Position	Product
*46792	DIAGRAM, WIRING (NOT FOR PURCHASE)
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHAN-DOOR HINGE (2)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	WCI 3051511
10	316282700 Frigidaire Oven Screw
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	CHANNEL-BURNER BOX
14	BURNER BOX BOTTOM
15	PNL-B/S-RH-WHITE
15	PNL-B/S-LH-WHITE
16	ROD - MAINTOP SUPT.
17	316067902 Frigidaire Oven Rack
18	BTTM-OVEN
18A	INSULATION, OVEN WRAPPER
18B	INSUL - OVEN BACK (NON-ILLUSTRATED)
19B	WCI 08067961
19	5303284616 Frigidaire Range Bulb Clip Thermostat
20	316539800 Frigidaire Oven Retainer
21	WCI 3131348
21B	316064600 Frigidaire Oven Support
21A	3131903 Frigidaire Door/Drawer Bumper
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
22	WCI 5303270160
22A	ANTI-TIP KIT (NOT ILLUSTRATED)
23A	COVER-OVEN FRONT
23	3203010 Frigidaire Clip
24	COVER-IGNITOR
24A	SHIELD-FLUE, (NON-ILLUSTRATED)
24B	SHIELD-TOP (NON-ILLUSTRATED)
25	5304515659 Frigidaire Oven Power Cord
