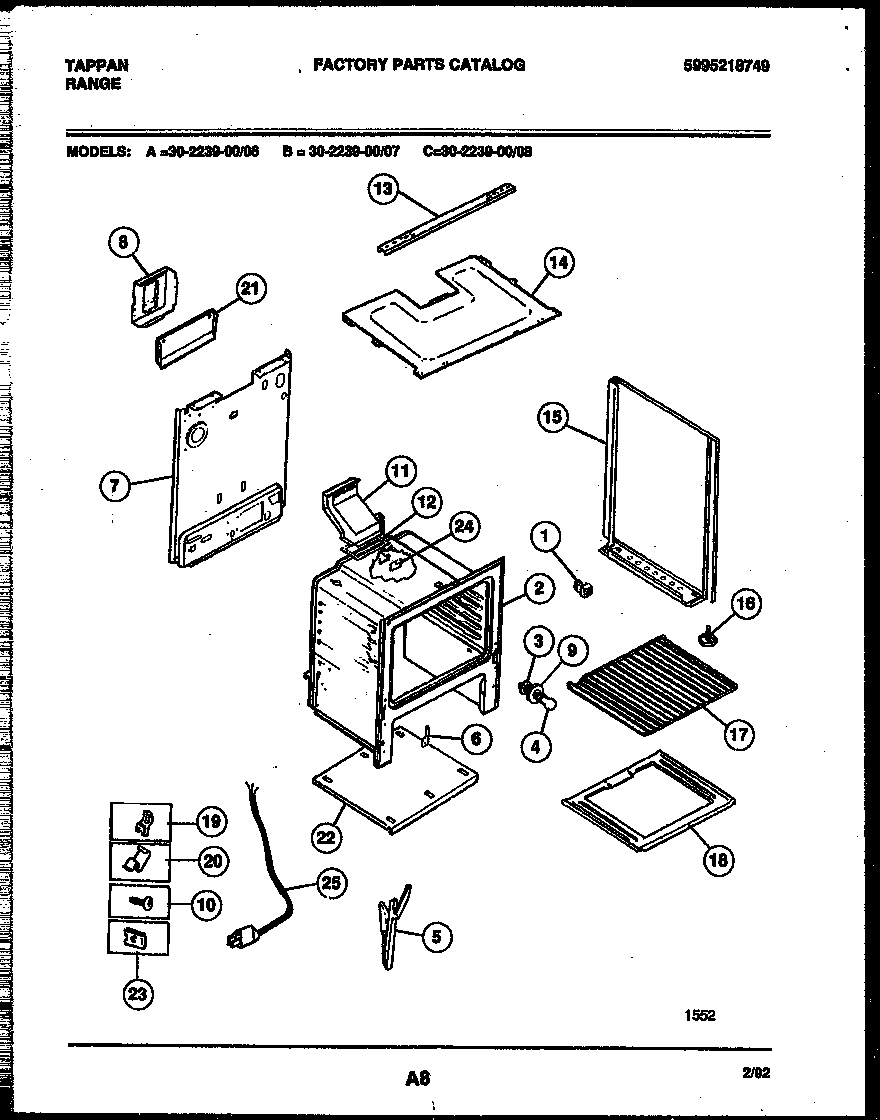

30-2239-00-08 07 – BODY PARTS

Products

PositionProduct
*59925DIAGRAM, WIRING (NOT FOR PURCHASE)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANNEL-DOOR HINGE
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15BPNL-B/S-LH-WHITE
15PNL-B/S-RH-WHITE
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18BTTM-OVEN
18AINSULATION, OVEN WRAPPER
19AWCI 08067961
19WCI 08010556
20316539800 Frigidaire Oven Retainer
21A3131903 Frigidaire Door/Drawer Bumper
21B316064600 Frigidaire Oven Support
21WCI 5303280614
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 5303270160
22AANTI-TIP KIT (NOT ILLUSTRATED)
23ACOVER-OVEN FRONT
233203010 Frigidaire Clip
24COVER-IGNITOR
24ASHIELD-FLUE, (NON-ILLUSTRATED)
24BSHIELD-TOP (NON-ILLUSTRATED)
255304515659 Frigidaire Oven Power Cord
