30-2239-23-04 02 – BACKGUARD

30-2239-23-04 02 – BACKGUARD

Written by

in

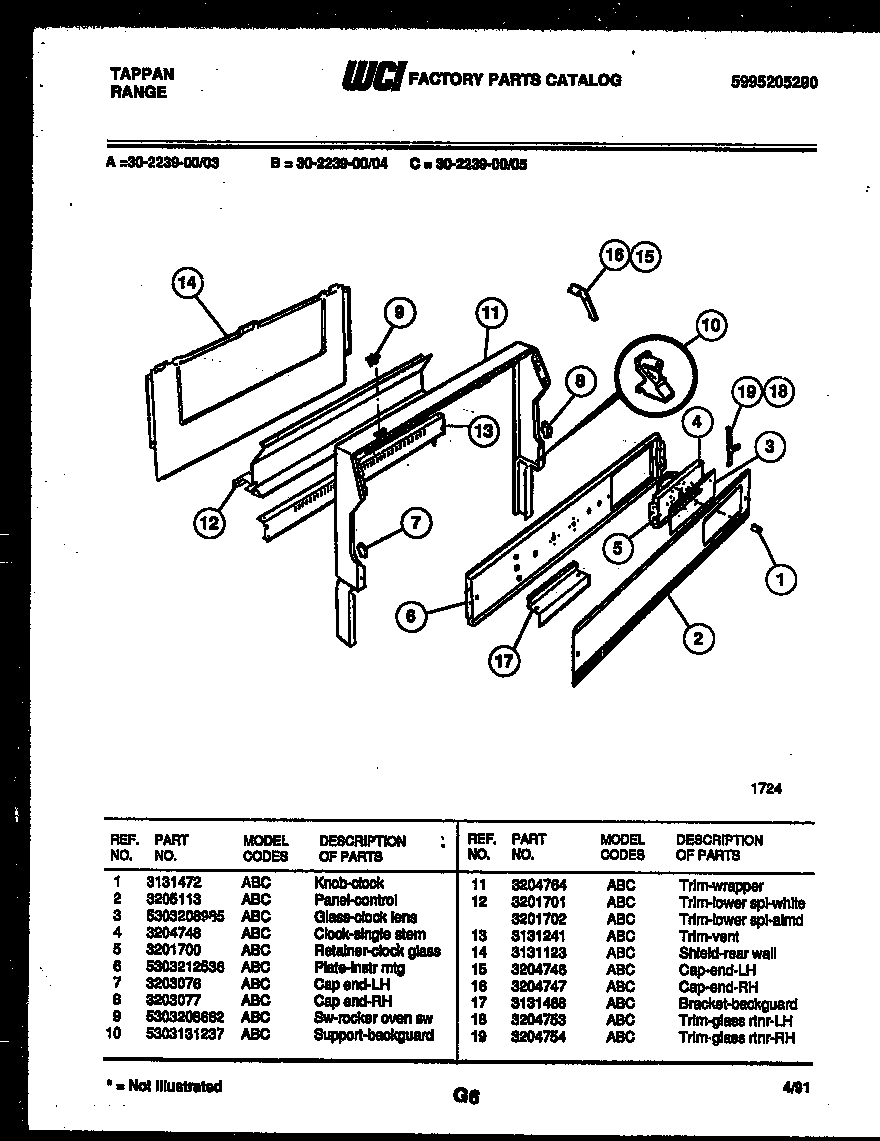

30-2239-23-04 02 – BACKGUARD

Products

PositionProduct
1KNOB-CLOCK
2PANEL-CONTROL, METAL
3LENS-CLOCK, GLASS
4WCI 3204748
5RETAINER, CLOCK GLASS, (2)
6PLATE – INST MOUNTING
7CAP-LH
8CAP-RH
95308015487 Frigidaire Switch-Oven Light
10SUPPORT-BACKGUARD,(2)
11WCI 3204764
12TRIM-LWR SPLSHR (ALMD)
13WCI 3131241
14SHIELD-BACKGUARD,REAR WALL
15WCI 3204746
16WCI 3204747
17WCI 3131468
18TRIM-GLASS RETAINER,LH
19TRIM-GLASS RETAINER,RH
