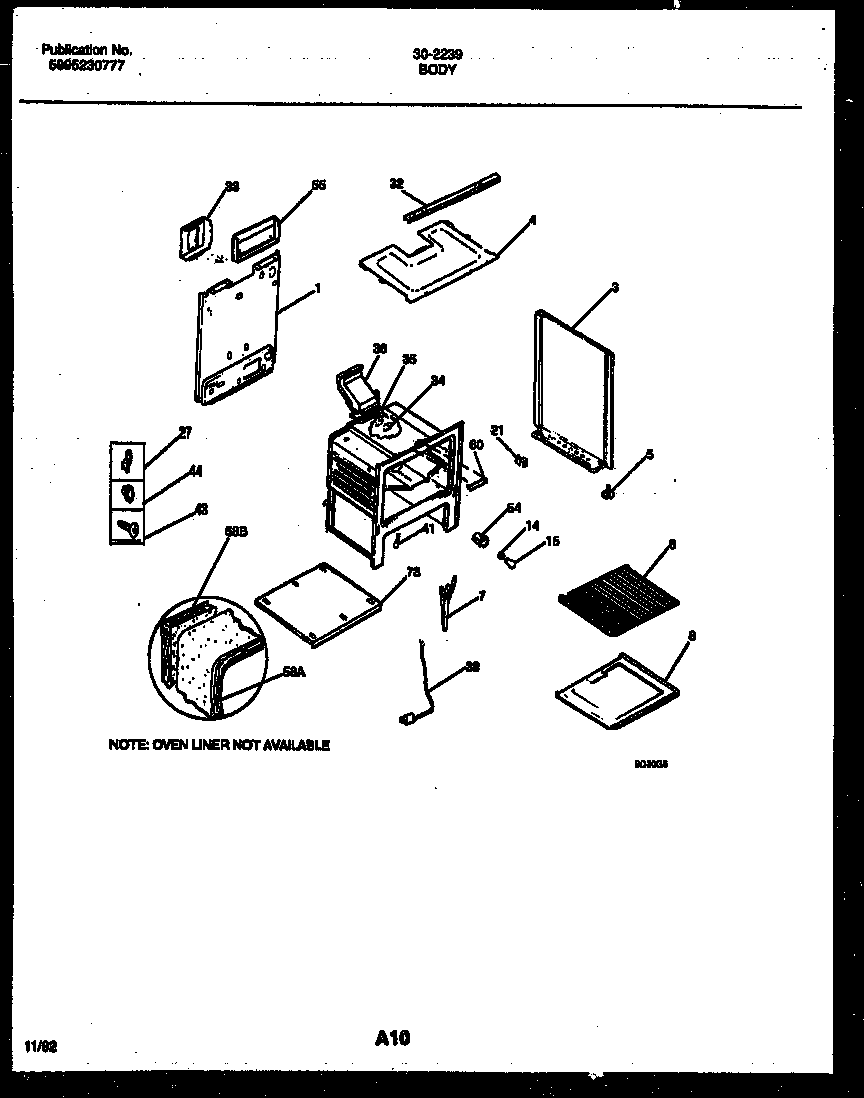

30-2239-23-09 06 – BODY PARTS

Products

Position	Product
*82253	WCI 5303280614
1	WCI 3203082
3	WCI 5303269543
3B	WCI 5303269545
4	BURNER BOX BOTTOM
5A	ANTI-TIP KIT (NOT ILLUSTRATED)
5B	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	BTTM-OVEN
8A	316064600 Frigidaire Oven Support
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 3131660
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39B	WCI 08067961
39A	COVER-POWER CORD, (NON-ILLUSTRATED)
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
54	WCI 5303271606
55A	SHIELD-FLUE, (NON-ILLUSTRATED)
55	SHIELD-TOP (NON-ILLUSTRATED)
58A	INSULATION, OVEN WRAPPER
58B	INSUL - OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
73	BASE-BROIL
