30-2241-00-01 02 – BACKGUARD

30-2241-00-01 02 – BACKGUARD

Written by

in

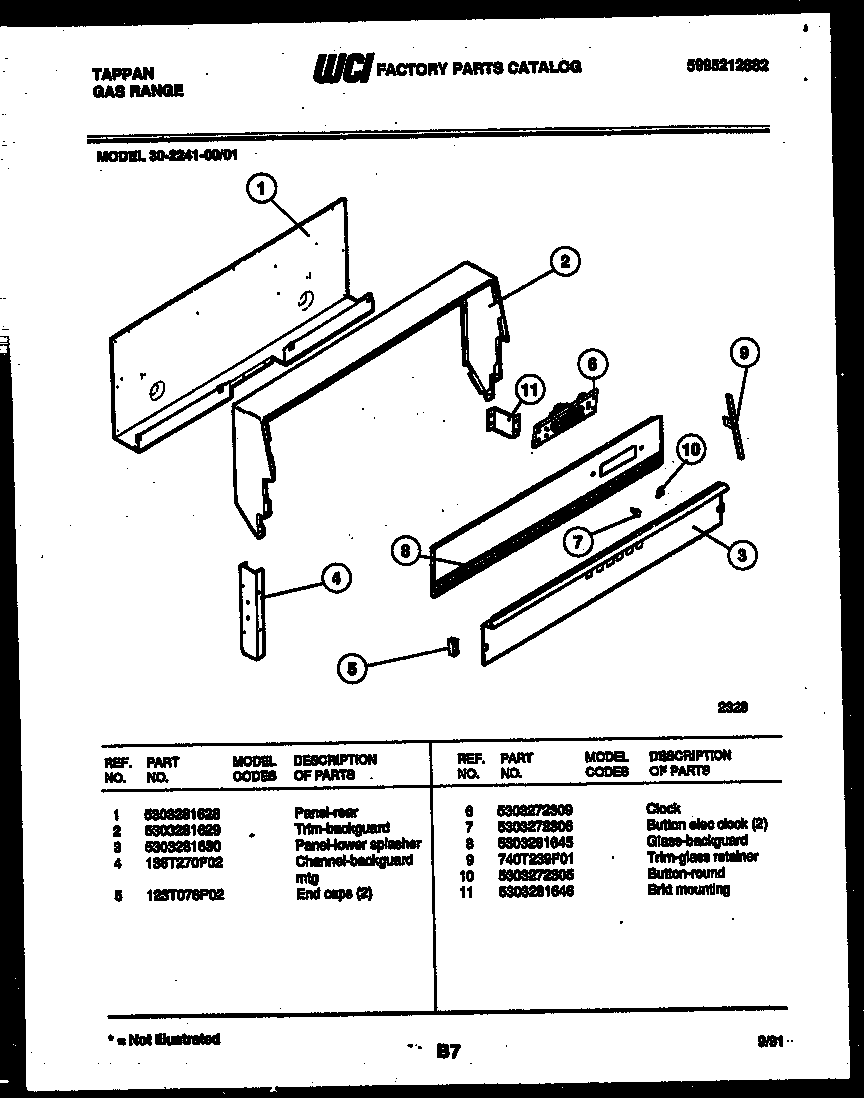

30-2241-00-01 02 – BACKGUARD

Products

PositionProduct
1WCI 5303281628
2TRIM-WRAPPER
3TRIM-VENT
4WCI 136T270F02
5WCI 123T076P02
6WCI 5303272309
7BUTTON-CLOCK
8PANEL-CONTROL, GLASS
9TRIM, RETAINER GLASS END (2)
10KNOB-TIMER BUTTON
11BRACKET-CLOCK MTG, (2)
