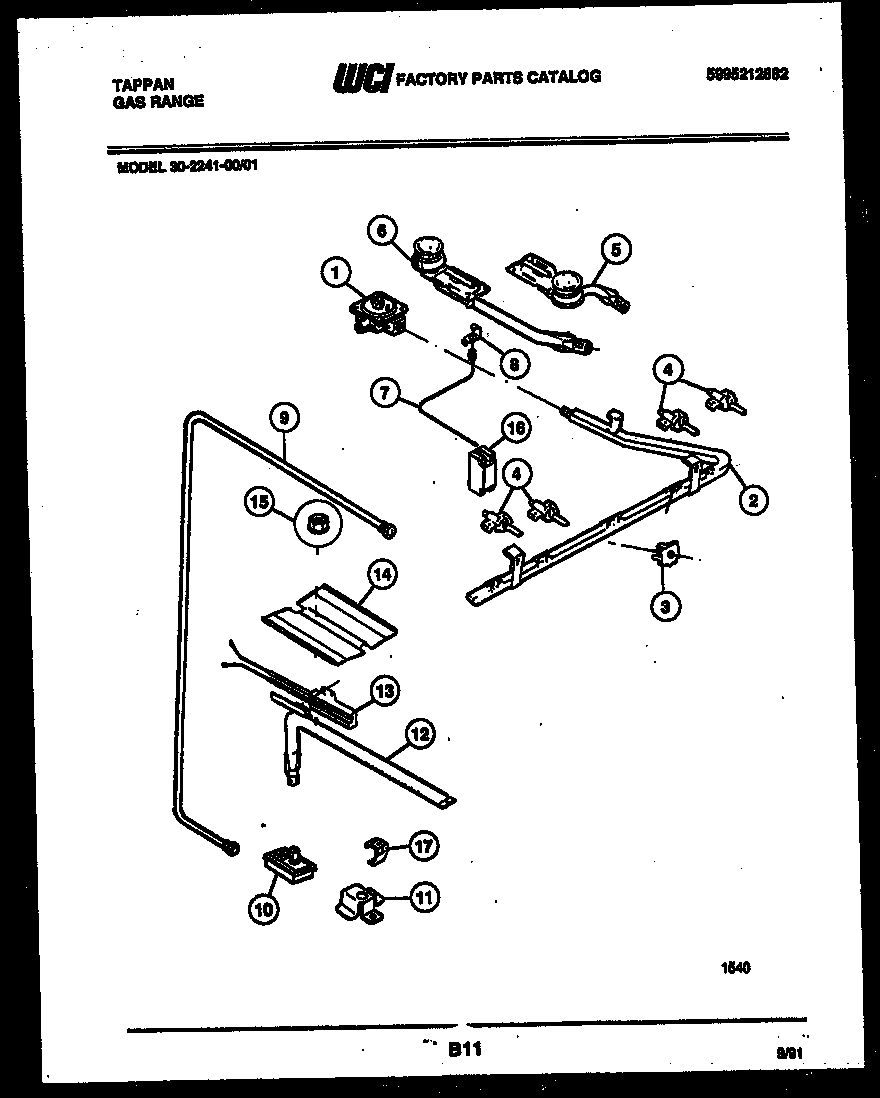

30-2241-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	CONTROL – REGUL
2	WCI 5303272435
3	IGN.-SWITCH
4	VALVE – TOP 2 POS (4)
4A	316048200 Frigidaire Oven Screw
5	5304506427 Frigidaire Oven Range Surface Burner (White)
6	5304506426 Frigidaire Oven Top Rear Burner
7	IGNITER-TOP BURNER, BASE, (2)
8	3016993 Frigidaire Oven Retainer
9	WCI 3203458
10	3203459 Frigidaire Oven Range Dual Gas Safety Valve
11	BRKT.-VALVE
12	WCI 3131439
13	5303935066 Frigidaire Oven Flat Igniter 17" Leads
14	WCI 3203265
15	5303013272 Frigidaire Oven Nut
16	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17	WCI 3018603
