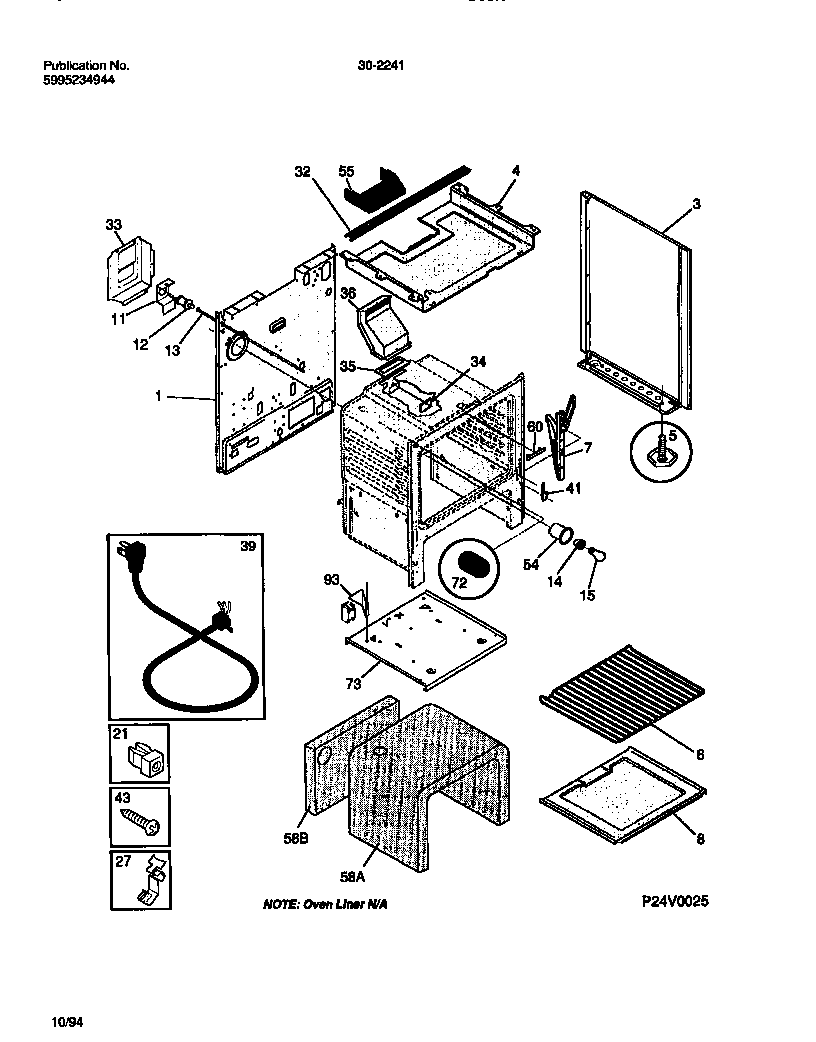

30-2241-00-05 04 – BODY

Products

PositionProduct
1WCI 3203082
3PNL-B/S-RH-WHITE
3APNL-B/S-LH-WHITE
4BURNER BOX BOTTOM
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AANTI-TIP KIT
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
27WCI 5303274616
32CHANNEL-BURNER BOX
33AWCI 5303291882
33WCI 3131660
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
39COVER-POWER CORD, (NON-ILLUSTRATED)
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
55ASHIELD-FLUE, (NON-ILLUSTRATED)
55WCI 5303291880
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
72COVER-LIGHT/SWITCH ROD
73BASE-BROIL
