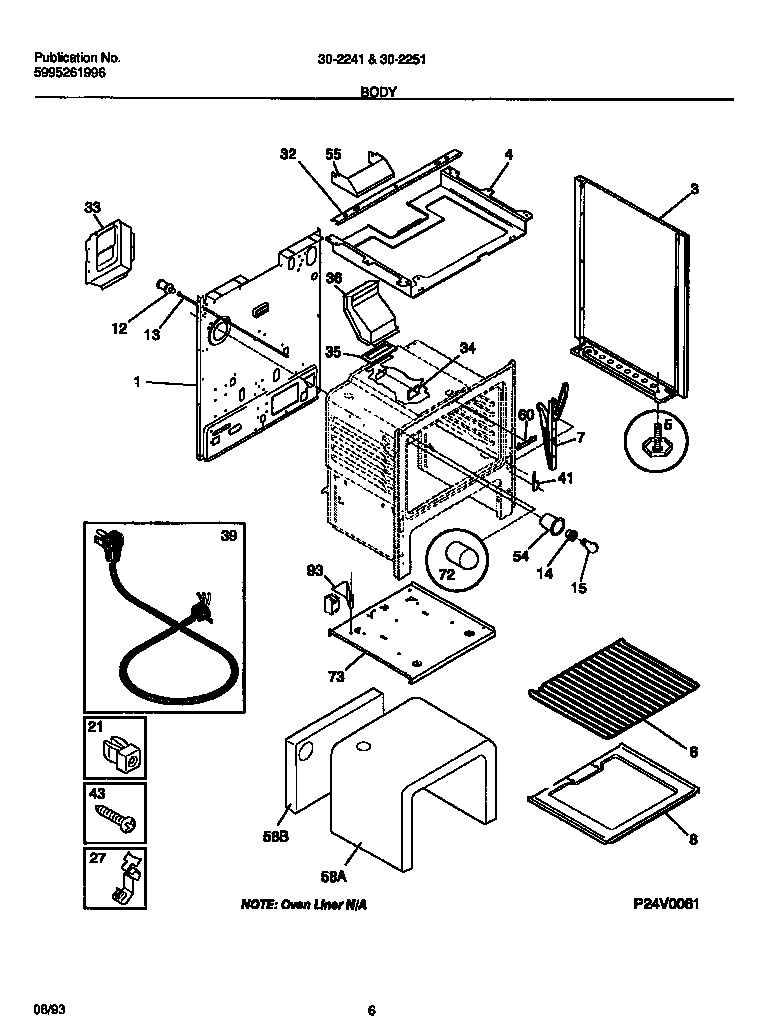

30-2241-00-08 04 – BODY

Products

Position	Product
1	WCI 316029410
3	WCI 316081004
3	WCI 316081005
4	WCI 316067204
5	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	316116000 Frigidaire Screw
5	WCI 3934058
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	316064600 Frigidaire Oven Support
8	BTTM-OVEN
12	WCI 316027702
13	WCI 316026800
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
55	WCI 5303291880
58A	INSULATION, OVEN WRAPPER
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
72	COVER-LIGHT/SWITCH ROD
73	BASE-BROIL
93A	WCI 5303280614
93C	5303321319 Frigidaire Refrigerator White Touch Up Paint
93	WCI 316055501
93B	WCI 08067961
