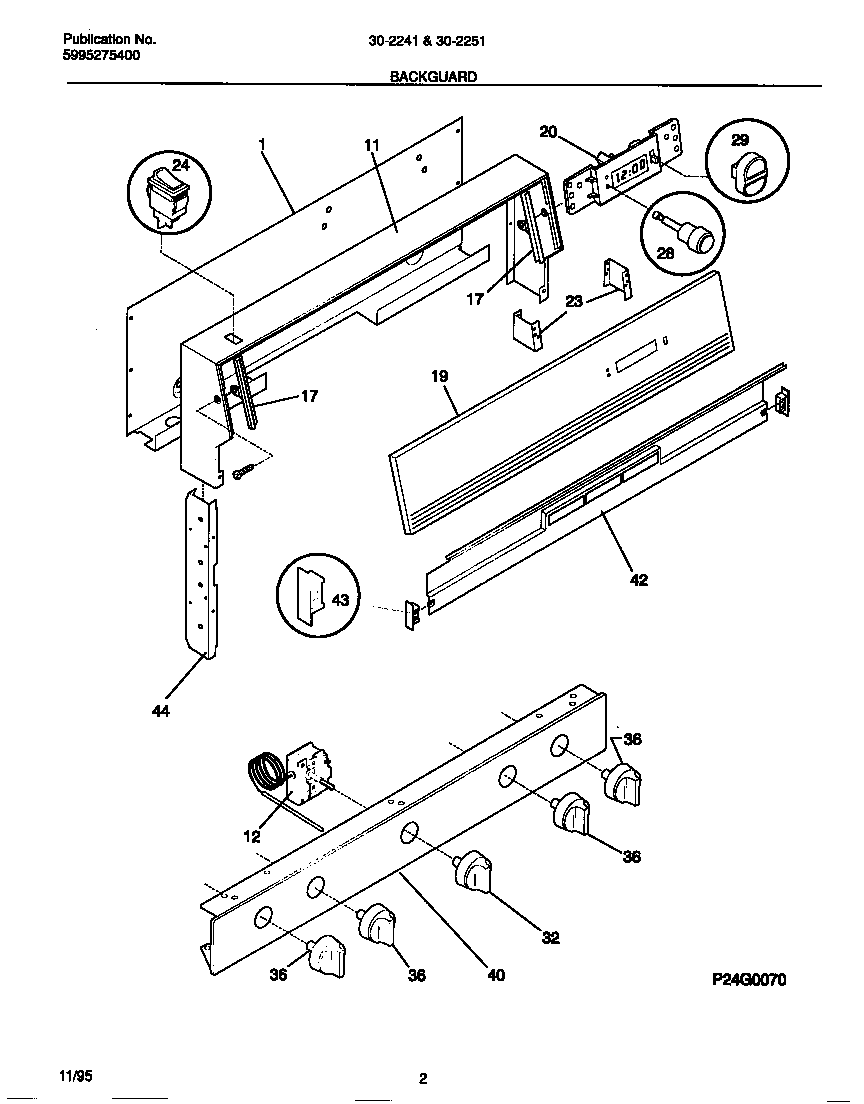

30-2241-00-09 02 – BACKGUARD

Products

Position	Product
*75920	WCI 5303281584
1	WCI 316052803
11	WCI 316056601
12B	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12A	316032411 Frigidaire Stove Temperature Control Thermostat
17	WCI 5303283987
19	PANEL-CONTROL, GLASS
20	WCI 5303272309
23	BRACKET-CLOCK MTG, (2)
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	KNOB-THERMOSTAT
36	WCI 3204869
40	WCI 5303271189
42	TRIM-VENT
43	WCI 5303283983
44	WCI 5303283981
60	316021105 Frigidaire Oven Screw
