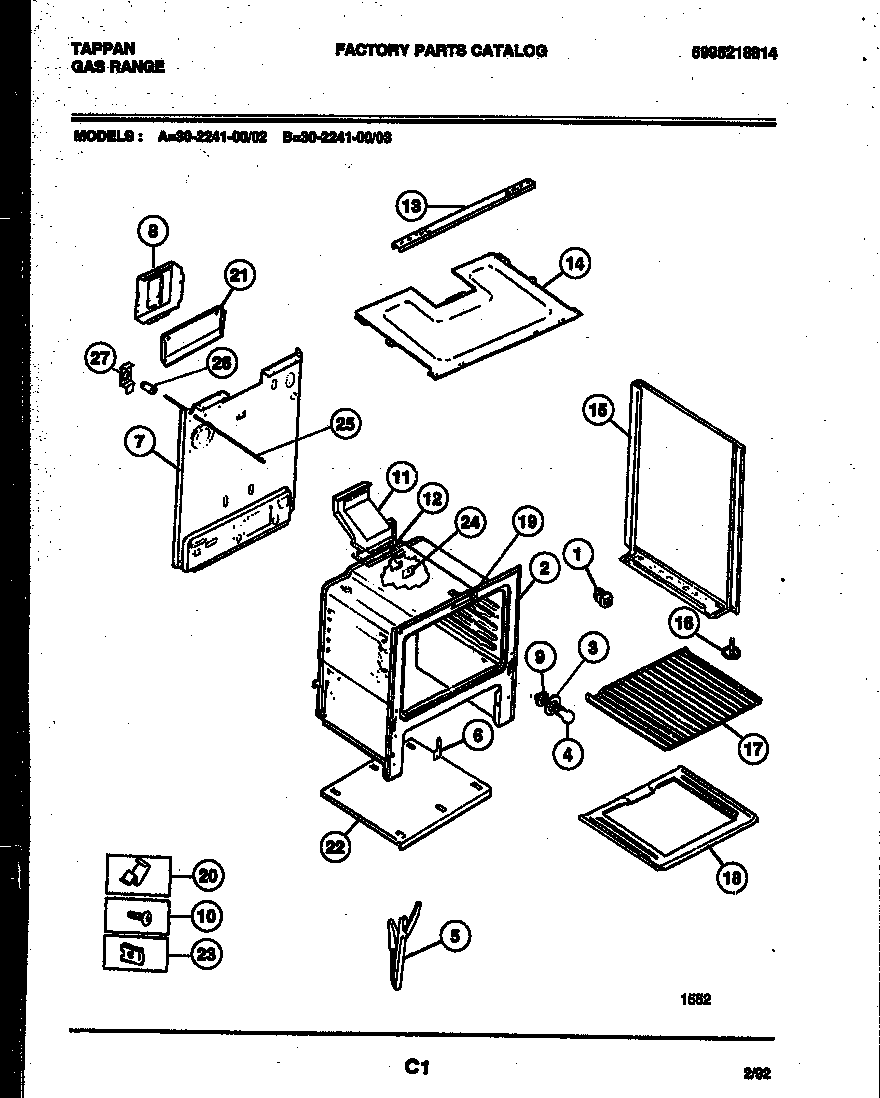

30-2241-23-02 07 – BODY PARTS

Products

PositionProduct
*63515WCI 19100200032
*63515WCI 08010570
*63515SHIELD-FLUE, (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6A5304515659 Frigidaire Oven Power Cord
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15AWCI 5303269545
15WCI 5303269543
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18AINSULATION, OVEN WRAPPER
18BTTM-OVEN
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
19COVER-OVEN FRONT
19AWCI 08067961
20316539800 Frigidaire Oven Retainer
21WCI 5303280614
21A316064600 Frigidaire Oven Support
22AANTI-TIP KIT
22BASE-BROIL
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
233203010 Frigidaire Clip
24COVER-IGNITOR
25WCI 5303209316
26SWITCH-OVEN LITE DOOR
27WCI 5303131289
