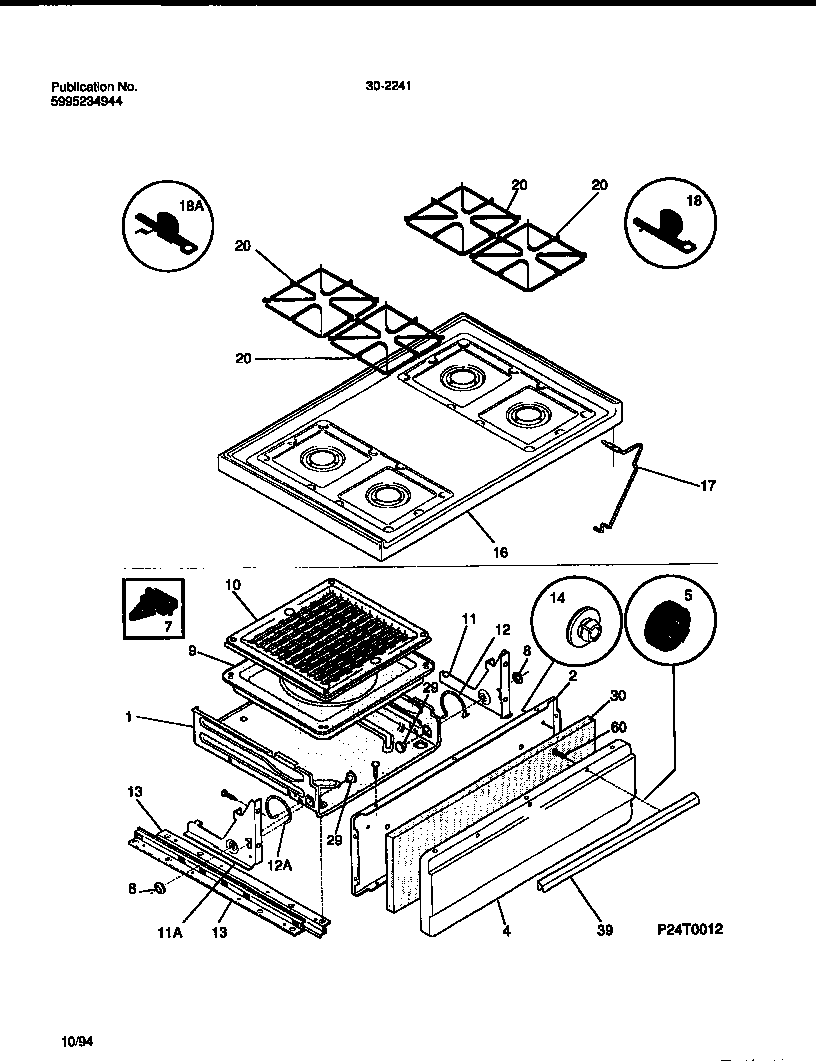

30-2241-23-06 05 – TOP/DRAWER

30-2241-23-06 05 – TOP/DRAWER

Written by

in

30-2241-23-06 05 – TOP/DRAWER

Products

PositionProduct
1DRAWER-BROILER
2WCI 3202803
4PANEL – BROILER ALMD
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11WCI 5303281621
11AWCI 5303281620
12SPRING-BROILER, RH
12AWCI 3018618`
13WCI 3131153
14WCI 3206216
16MAIN TOP, ALMOND
17ROD-MAIN SUPPORT (2)
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 5303272852
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, BRUSHED CHROME
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
