30-2242-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

30-2242-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

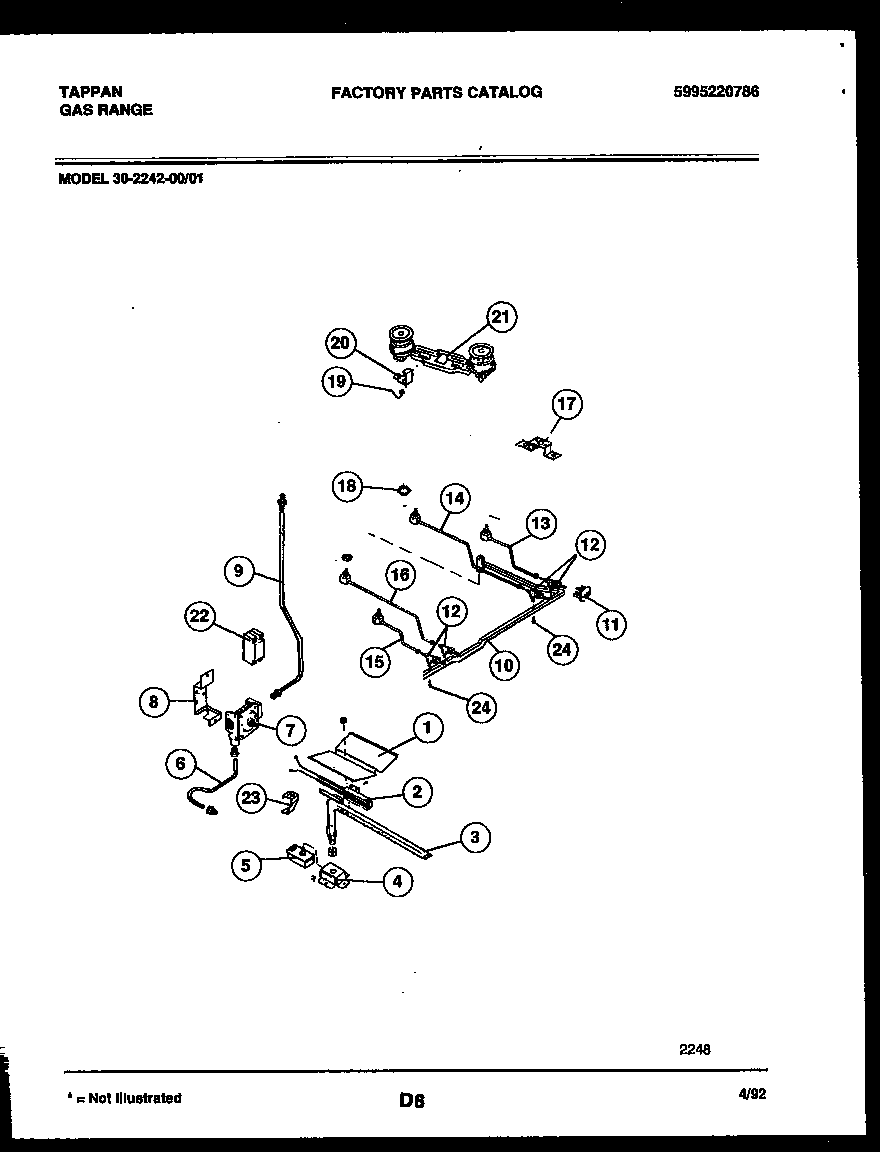

30-2242-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 3203265
25303935066 Frigidaire Oven Flat Igniter 17" Leads
3WCI 3131439
4BRKT.-VALVE
53203459 Frigidaire Oven Range Dual Gas Safety Valve
6316065006 Frigidaire Tube P1
75303935125 Frigidaire Pressure Regulator
8316091600 Frigidaire Oven Bracket
9TUBE-ALUM 3/8 REG/MANIFOLD PIPE
10WCI 5303271375
11WCI 316032001
12VALVE, TOP, 2 POS, (4)
13WCI 5303283665
14WCI 5303283667
15WCI 5303283666
16WCI 5303283668
17BRACKET BURNER MTG
18NUT, SPECIAL
19IGNITER-TOP BURNER, BASE, (2)
203016993 Frigidaire Oven Retainer
21BURNER-TOP-DOUBLE
225303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
23WCI 3018603
24316048200 Frigidaire Oven Screw
