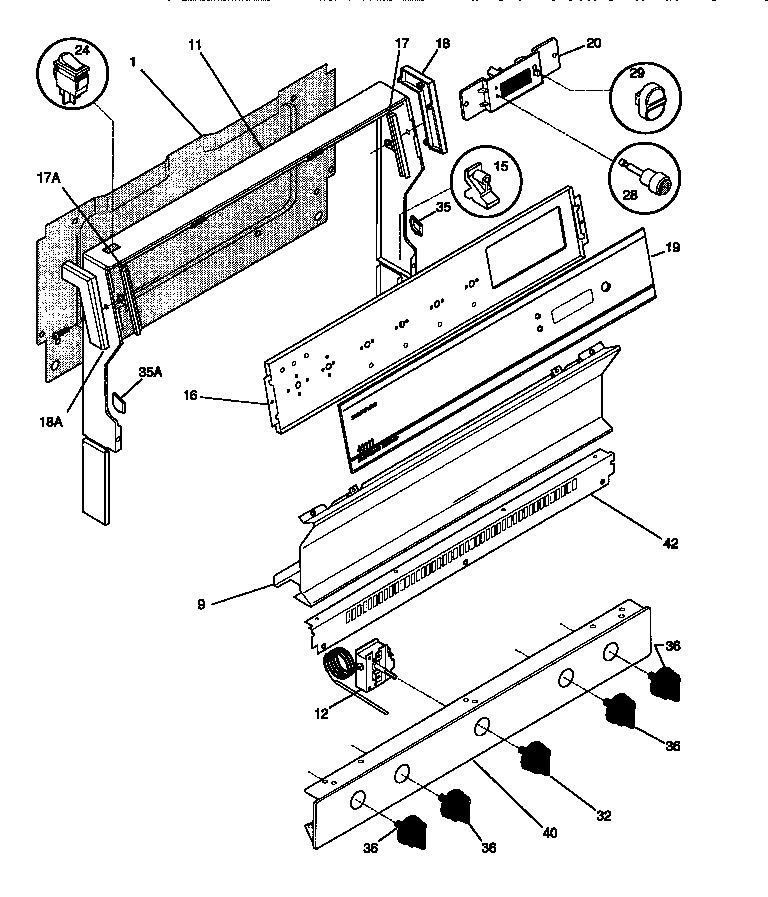

30-2242-23-04 02 – BACKGUARD

Products

Position	Product
*72880	WCI 5303281584
*72881	SCREW-END CAP
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043502
11	WCI 3204755
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17	TRIM-GLASS RETAINER,LH
17	TRIM-GLASS RETAINER,RH
18	WCI 3204747
18	WCI 3204746
19	WCI 316008100
20	WCI 5303272309
24	5304527841 Frigidaire Oven Rocker Switch (Black)
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	WCI 316022912
35	CAP-LH
35	CAP-RH
36	WCI 316023015
40	WCI 5303273109
42	WCI 316084300
