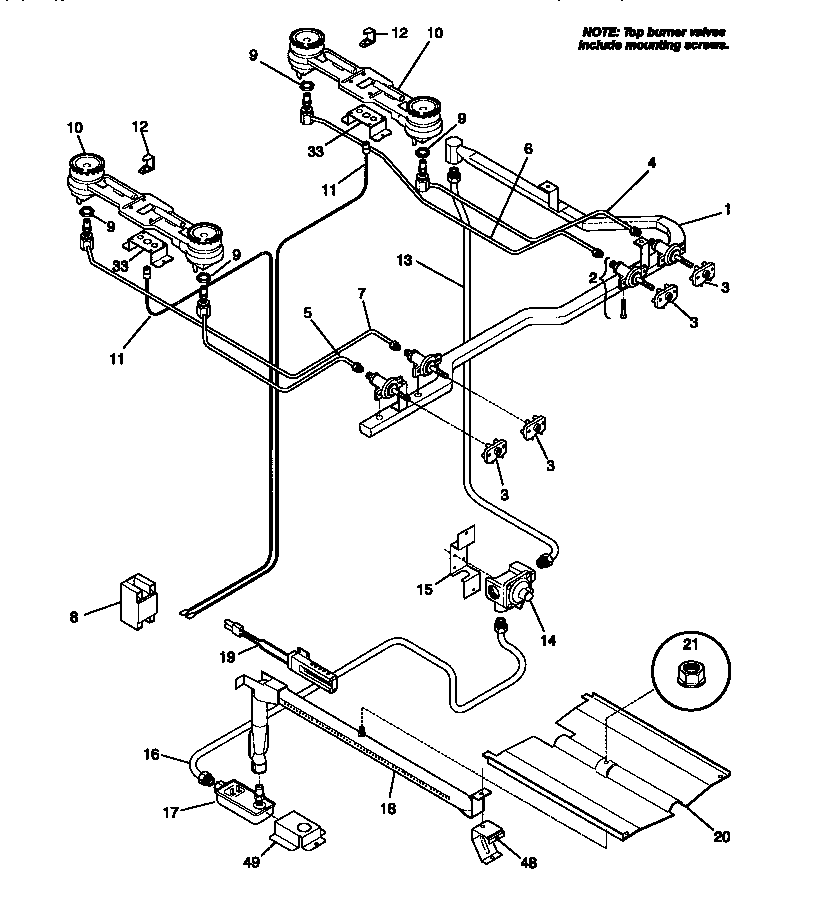

30-2242-23-04 03 – BURNER

30-2242-23-04 03 – BURNER

Written by

in

30-2242-23-04 03 – BURNER

Products

PositionProduct
1WCI 316066201
2AVALVE, TOP, 2 POS, (4)
2B316048200 Frigidaire Oven Screw
3BSWITCH HARNESS TERMINAL KIT
3AWCI 316032001
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10WCI 316057100
11BIGNITER-TOP BURNER, BASE, 33“
11AIGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
13WCI 316065005
14B316021104 Frigidaire Oven Screw Assembly
14A5303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 5303288409
215303013272 Frigidaire Oven Nut
33BRACKET BURNER MTG
48WCI 3018603
49BRKT.-VALVE
