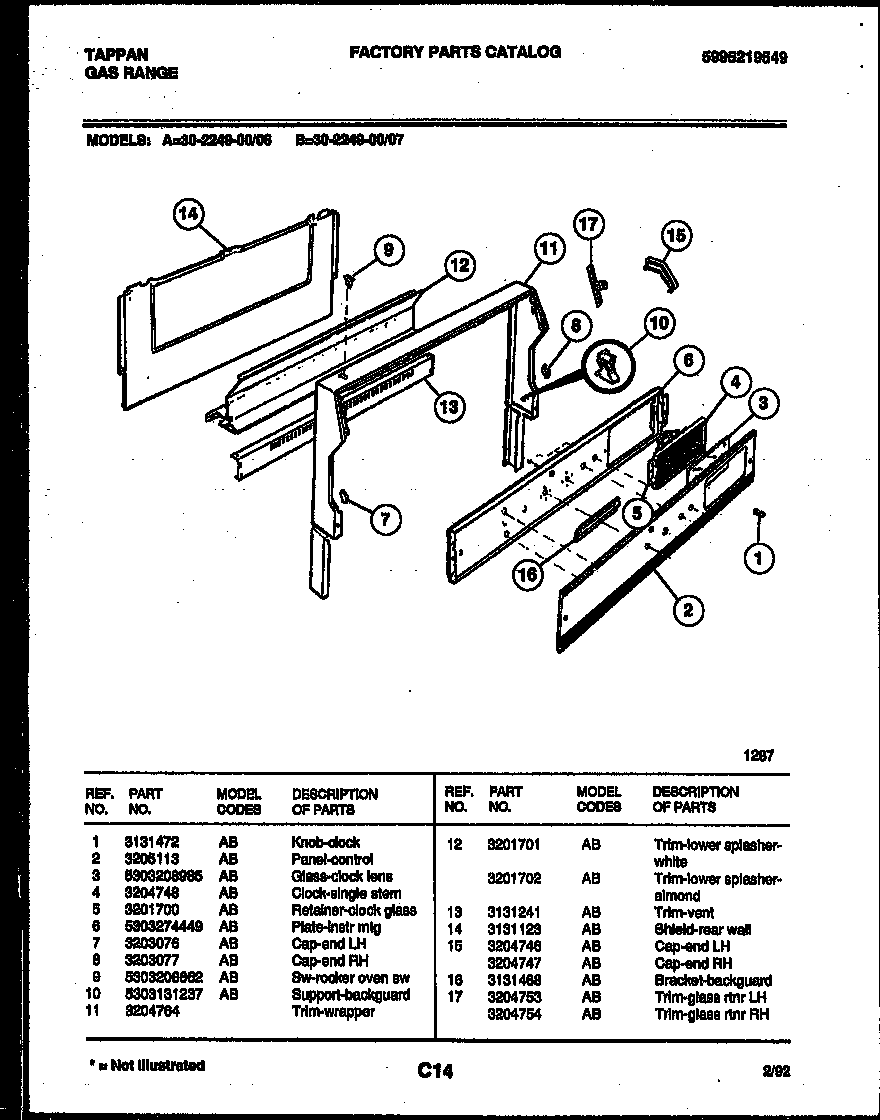

30-2249-00-07 02 – BACKGUARD

Products

Position	Product
1	KNOB-CLOCK
2	PANEL-CONTROL, METAL
3	LENS-CLOCK, GLASS
4	WCI 3204748
5	RETAINER, CLOCK GLASS, (2)
6	PLATE-INSTRUMENT
7	CAP-LH
8	CAP-RH
9	5308015487 Frigidaire Switch-Oven Light
10	SUPPORT-BACKGUARD,(2)
11	WCI 3204764
12	TRIM-LOWER SPLASHER (WHITE)
13	WCI 3131241
14	SHIELD-BACKGUARD,REAR WALL
15	WCI 3204746
15A	WCI 3204747
16	WCI 3131468
17	TRIM-GLASS RETAINER,LH
17A	TRIM-GLASS RETAINER,RH
