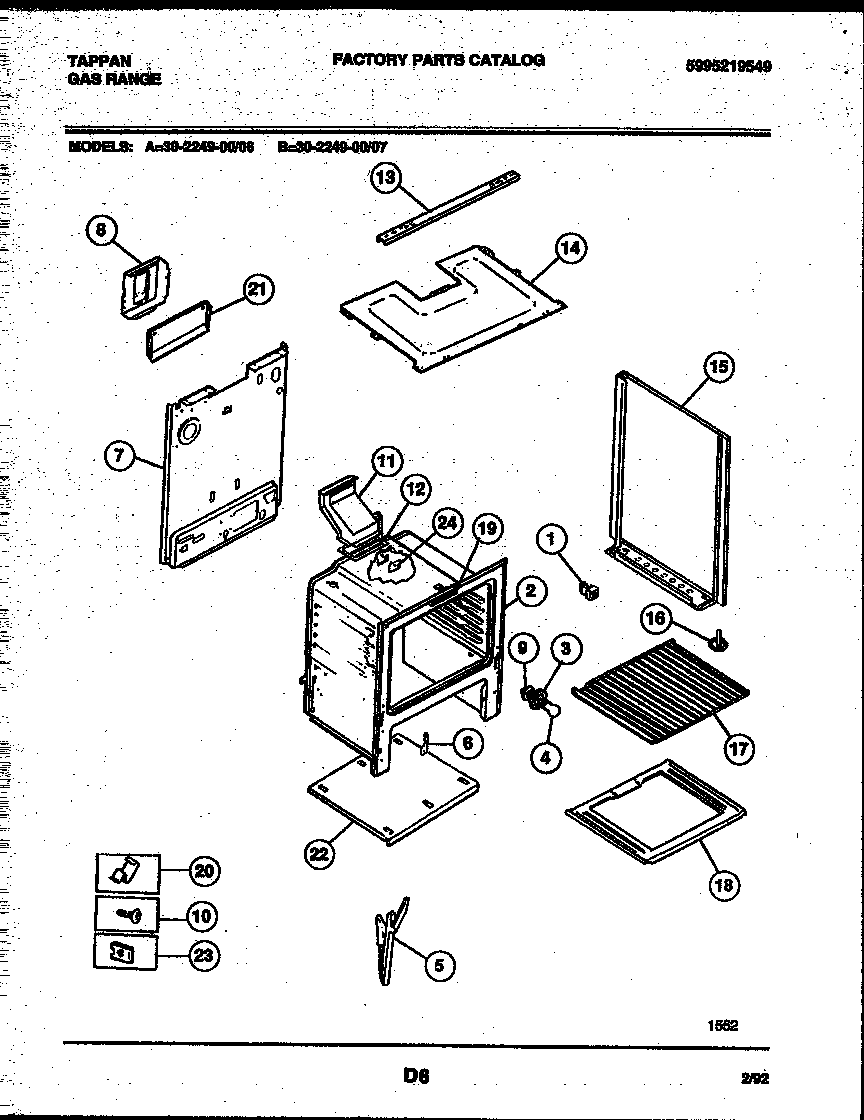

30-2249-23-07 07 – BODY PARTS

Products

PositionProduct
*61979SHIELD-TOP (NON-ILLUSTRATED)
*61979SHIELD-FLUE, (NON-ILLUSTRATED)
*61979DIAGRAM, WIRING (NOT FOR PURCHASE)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5Hinge,oven door ,(2)
6WCI 3131570
6A5304515659 Frigidaire Oven Power Cord
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15WCI 5303269543
15AWCI 5303269545
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18BTTM-OVEN
18AINSULATION, OVEN WRAPPER
19COVER-OVEN FRONT
19AWCI 08067961
20316539800 Frigidaire Oven Retainer
21B316064600 Frigidaire Oven Support
21WCI 5303280614
21A3131903 Frigidaire Door/Drawer Bumper
22AANTI-TIP KIT (NOT ILLUSTRATED)
22WCI 5303270160
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
233203010 Frigidaire Clip
24COVER-IGNITOR
