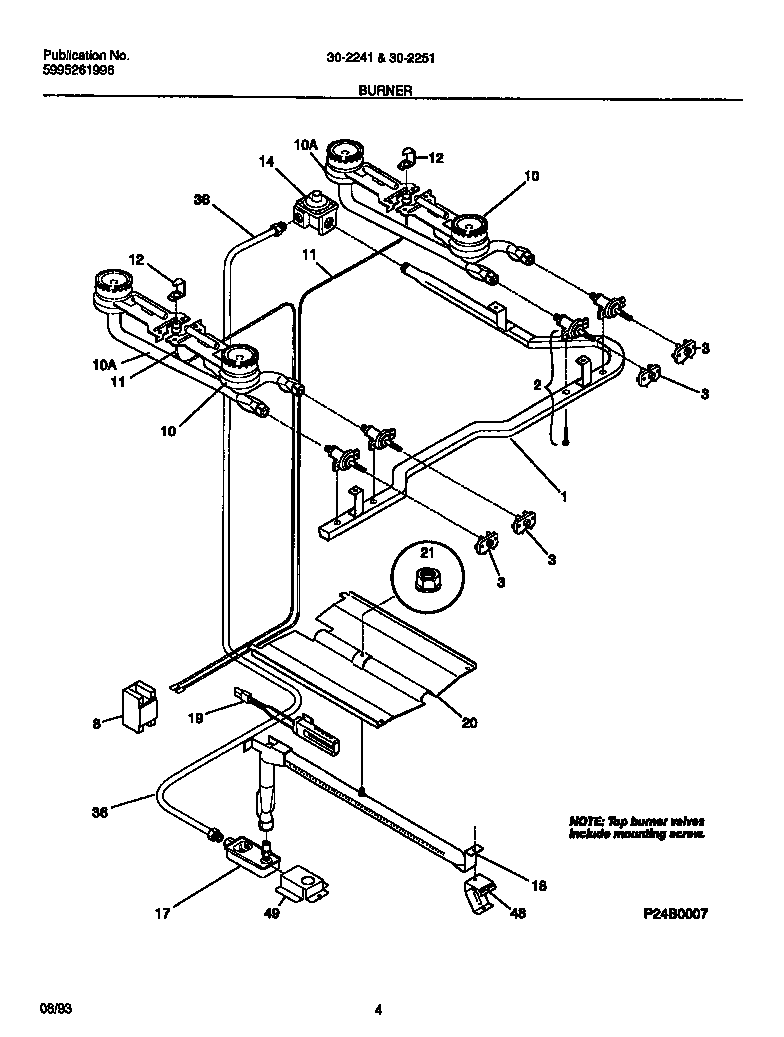

30-2251-00-08 03 – BURNER

Products

Position	Product
1	WCI 5303272435
2	VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS
3	WCI 316032001
3	SWITCH HARNESS TERMINAL KIT
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
10	5304506427 Frigidaire Oven Range Surface Burner (White)
10A	5304506426 Frigidaire Oven Top Rear Burner
11	IGNITER-TOP BURNER, BASE, (2)
12	3016993 Frigidaire Oven Retainer
14	WCI 316082900
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	WCI 3131439
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
36	WCI 316083000
48	WCI 3018603
49	BRKT.-VALVE
