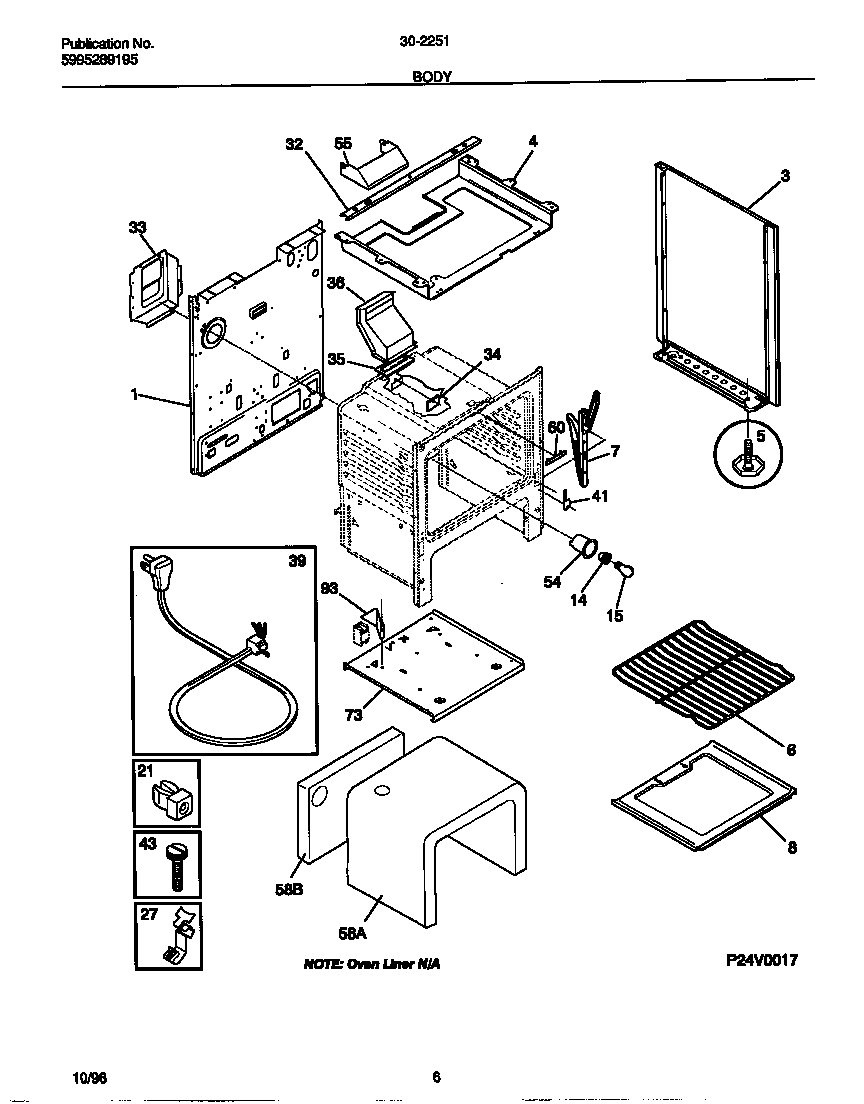

30-2251-00-11 04 – BODY

Products

Position	Product
*33843	WCI 5303280614
*33844	WCI 5303281584
*33845	WCI 5303295823
1	WCI 316029410
3	WCI 316081029
3	WCI 316081028
4	WCI 316067204
5D	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C	316116000 Frigidaire Screw
5B	WCI 3934058
5A	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7B	3203010 Frigidaire Clip
7A	Hinge,oven door ,(2)
8A	BTTM-OVEN
8B	316064600 Frigidaire Oven Support
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
55	WCI 5303291880
58	INSULATION, OVEN WRAPPER
58	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
