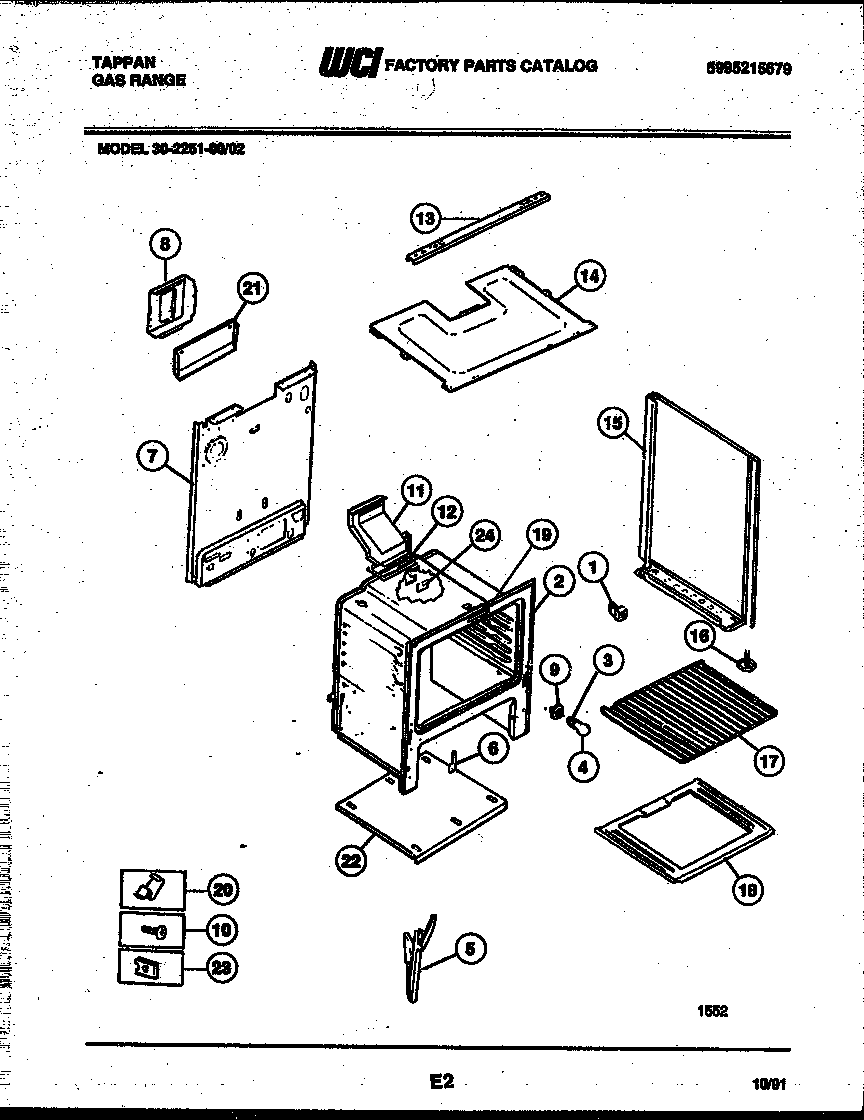

30-2251-23-02 07 – BODY PARTS

Products

Position	Product
*62073	WCI 19100200032
*62073	SHIELD-FLUE, (NON-ILLUSTRATED)
*62073	WCI 08010570
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHAN-DOOR HINGE (2)
6	WCI 3131570
6A	5304515659 Frigidaire Oven Power Cord
7	WCI 3203082
8	WCI 3131660
9	WCI 5303271606
10	316282700 Frigidaire Oven Screw
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	CHANNEL-BURNER BOX
14	BURNER BOX BOTTOM
15A	WCI 5303269545
15	WCI 5303269543
16	SCREW-LEVELING
17	316067902 Frigidaire Oven Rack
18	BTTM-OVEN
18B	INSUL – OVEN BACK (NON-ILLUSTRATED)
18A	INSULATION, OVEN WRAPPER
19	COVER-OVEN FRONT
19A	WCI 08067961
20	316539800 Frigidaire Oven Retainer
21	WCI 5303280614
21A	316064600 Frigidaire Oven Support
22A	ANTI-TIP KIT
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
22	BASE-BROIL
23	3203010 Frigidaire Clip
24	COVER-IGNITOR
