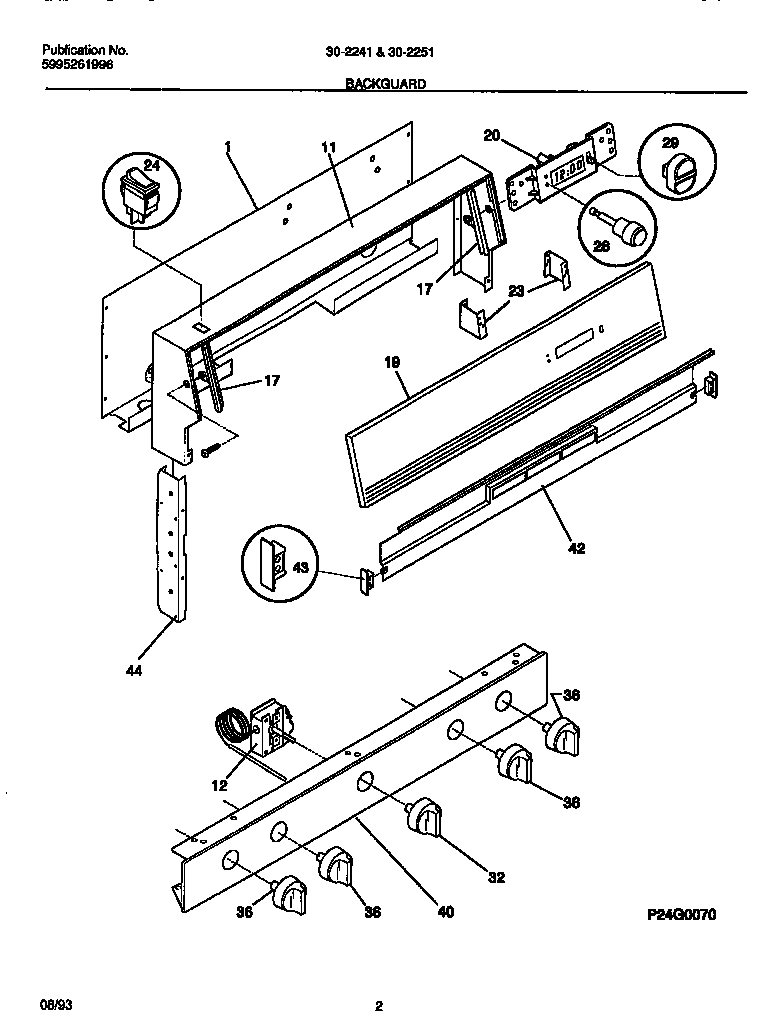

30-2251-23-08 02 – BACKGUARD

Products

Position	Product
1	WCI 316052803
11	WCI 316056600
12	INSULATOR-THERMOSTAT (NOT ILLUSTRATED)
12	316032411 Frigidaire Stove Temperature Control Thermostat
17	WCI 5303283987
19	PANEL-CONTROL, GLASS
20	WCI 5303272309
23	BRACKET-CLOCK MTG, (2)
24	5308015487 Frigidaire Switch-Oven Light
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	KNOB-THERMOSTAT
36	WCI 3204869
40	WCI 5303271189
42	TRIM-VENT
43	WCI 5303283983
44A	316021105 Frigidaire Oven Screw
44B	WCI 5303281584
44	WCI 5303283981
