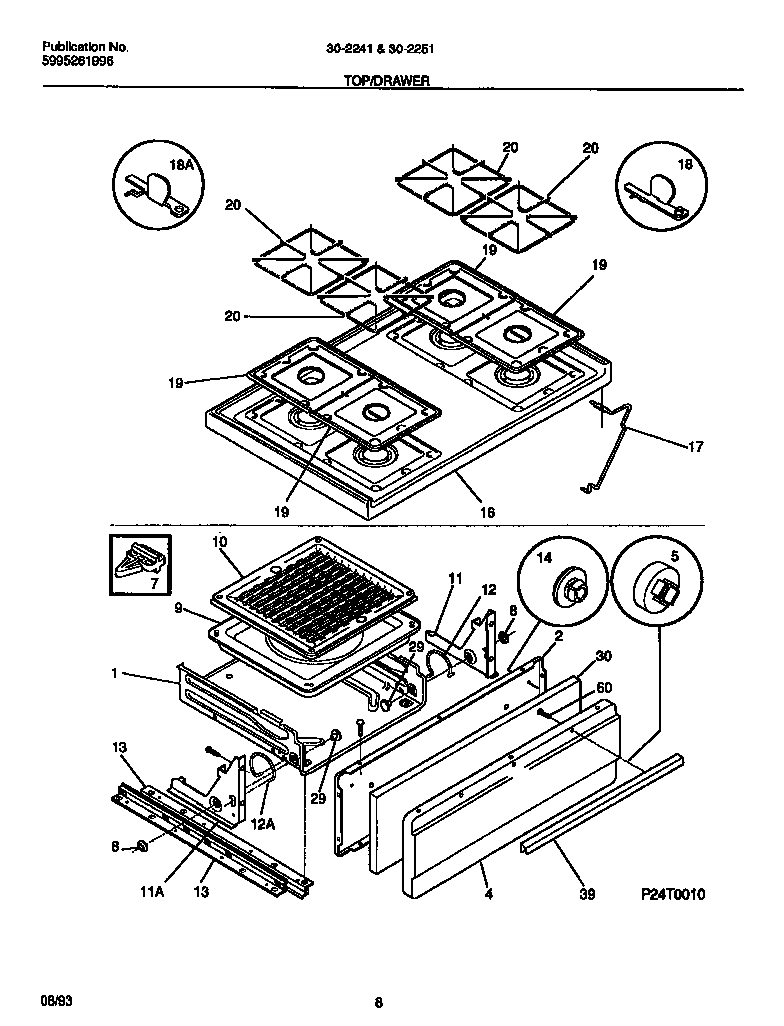

30-2251-23-08 05 – TOP/DRAWERadmin2025-04-26T08:37:12+00:0030-2251-23-08 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| 1 | DRAWER-BROILER |
| 2 | WCI 3202803 |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 4 | WCI 316056206 |
| 5 | FSTNR, SPACER (2) |
| 7 | GLIDE-DRAWER, REAR |
| 8 | WCI 3131386 |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 11A | BRACKET-BROILER HINGE, LH |
| 11 | BRACKET-BROILER HINGE, RH |
| 12 | SPRING-BROILER, RH |
| 12A | WCI 3018618` |
| 13 | WCI 3131153 |
| 14 | WCI 3206216 |
| 16 | MAIN TOP, ALMOND |
| 17 | WCI 316066900 |
| 18A | BRACKET-HINGE,MAIN TOP LH |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 19 | WCI 316011403 |
| 20 | WCI 5303272852 |
| 29 | PIN, HINGE (2) |
| 30 | INSULATION, BROILER DRAWER |
| 39 | HANDLE-DRAWER, BRUSHED CHROME |
| 60A | WCI 5303281584 |
| 60 | SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2 |
