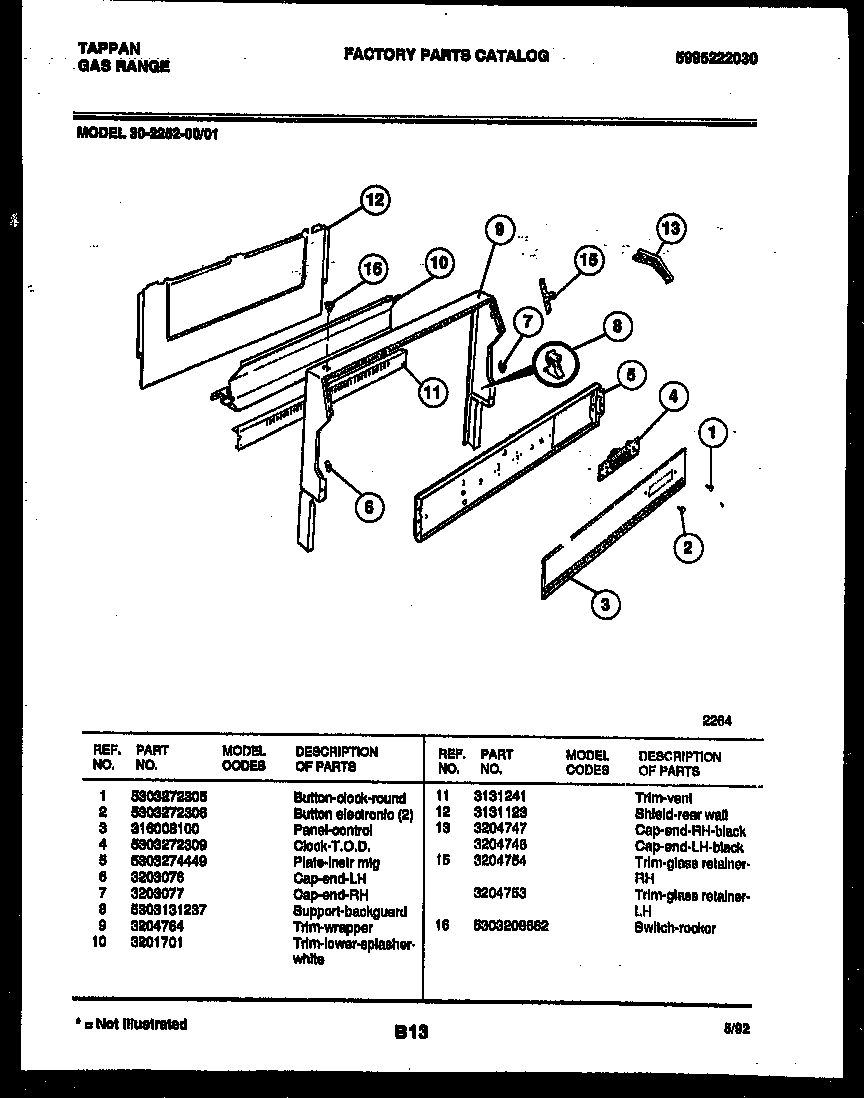

30-2252-00-01 02 – BACKGUARD

Written by

Products

Position	Product
1	KNOB-TIMER BUTTON
2	BUTTON-CLOCK
3	WCI 316008100
4	WCI 5303272309
5	PLATE-INSTRUMENT
6	CAP-LH
7	CAP-RH
8	SUPPORT-BACKGUARD,(2)
9	WCI 3204764
10	TRIM-LOWER SPLASHER (WHITE)
11	WCI 3131241
12	SHIELD-BACKGUARD,REAR WALL
13A	WCI 3204746
13	WCI 3204747
15	TRIM-GLASS RETAINER,RH
15A	TRIM-GLASS RETAINER,LH
16	5308015487 Frigidaire Switch-Oven Light
