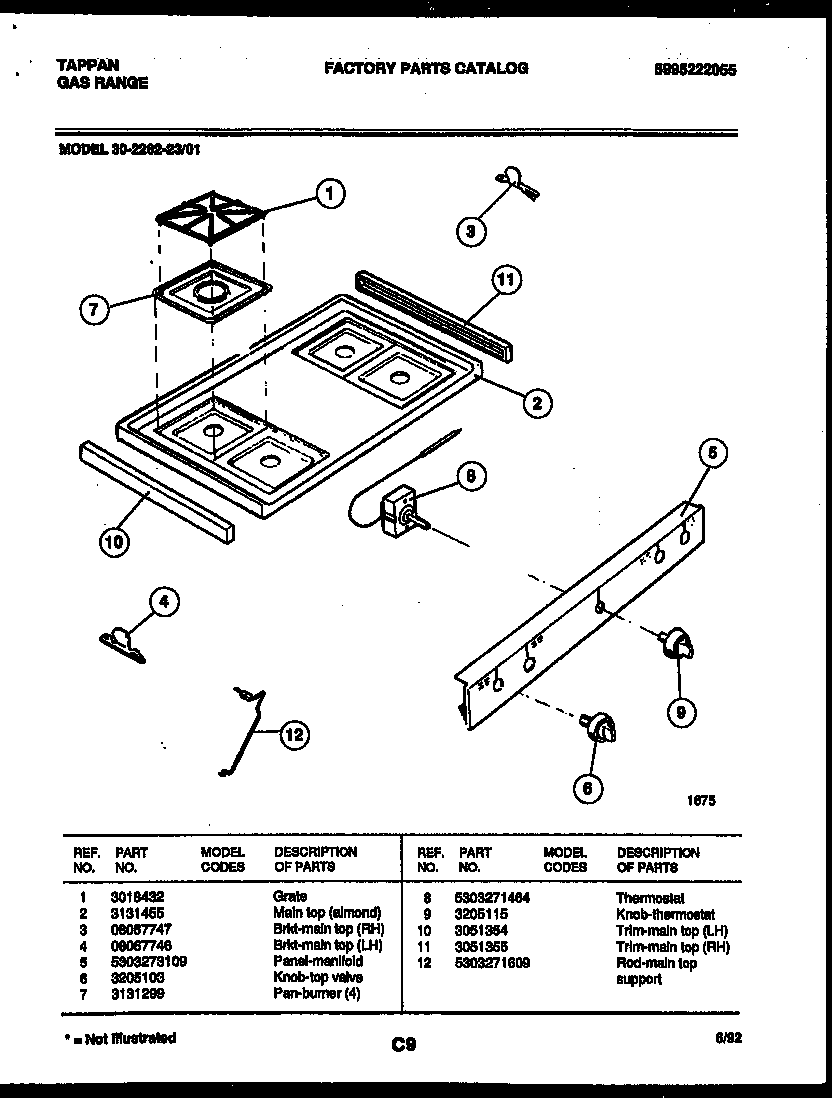

30-2262-23-01 03 – COOKTOP PARTS

Written by

Products

Position	Product
1	GRATE (4)
2	MAIN TOP, ALMOND
3	BRACKET-HINGE,MAIN TOP RH
4	BRACKET-HINGE,MAIN TOP LH
5	WCI 5303273109
6	WCI 3205103
7	WCI 3131299
8	316032411 Frigidaire Stove Temperature Control Thermostat
9	WCI 3205115
10	WCI 3051354
11	WCI 3051355
12	ROD-MAIN SUPPORT (2)
