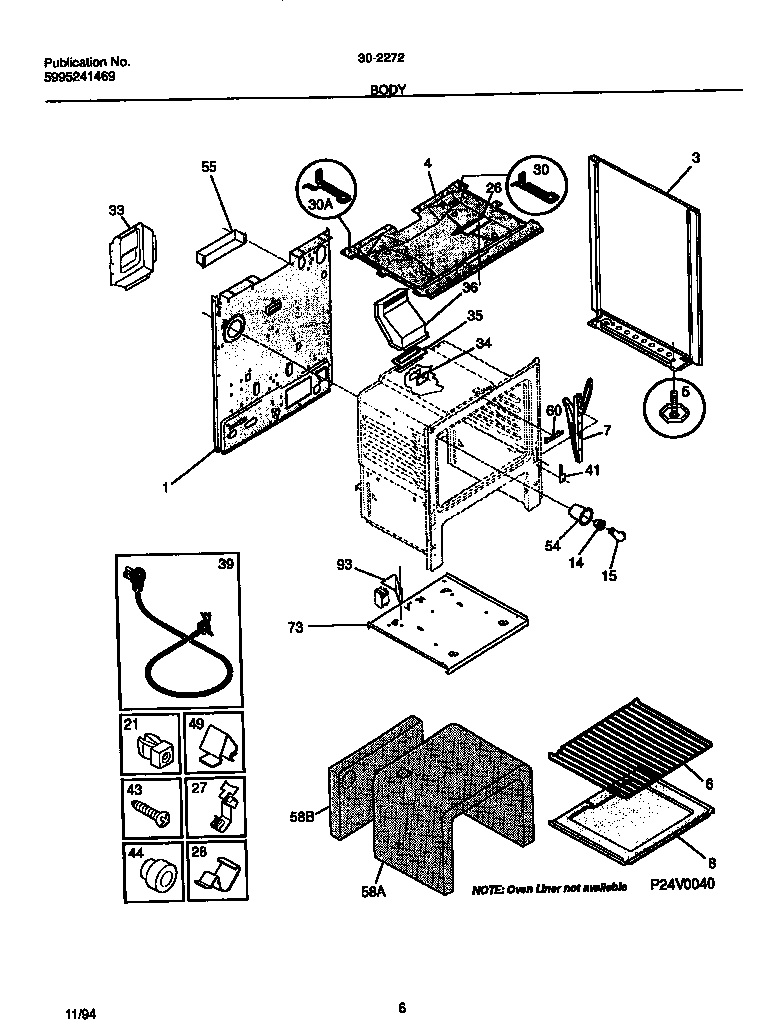

30-2272-00-02 04 – BODY

30-2272-00-02 04 – BODY

Written by

in

30-2272-00-02 04 – BODY

Products

PositionProduct
*29761WCI 5303280614
*297625303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 3203082
3PNL-B/S-RH-WHITE
3APNL-B/S-LH-WHITE
4WCI 5303269487
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AANTI-TIP KIT
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26HEX NUT
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
54WCI 3051511
55WCI 5303291880
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
