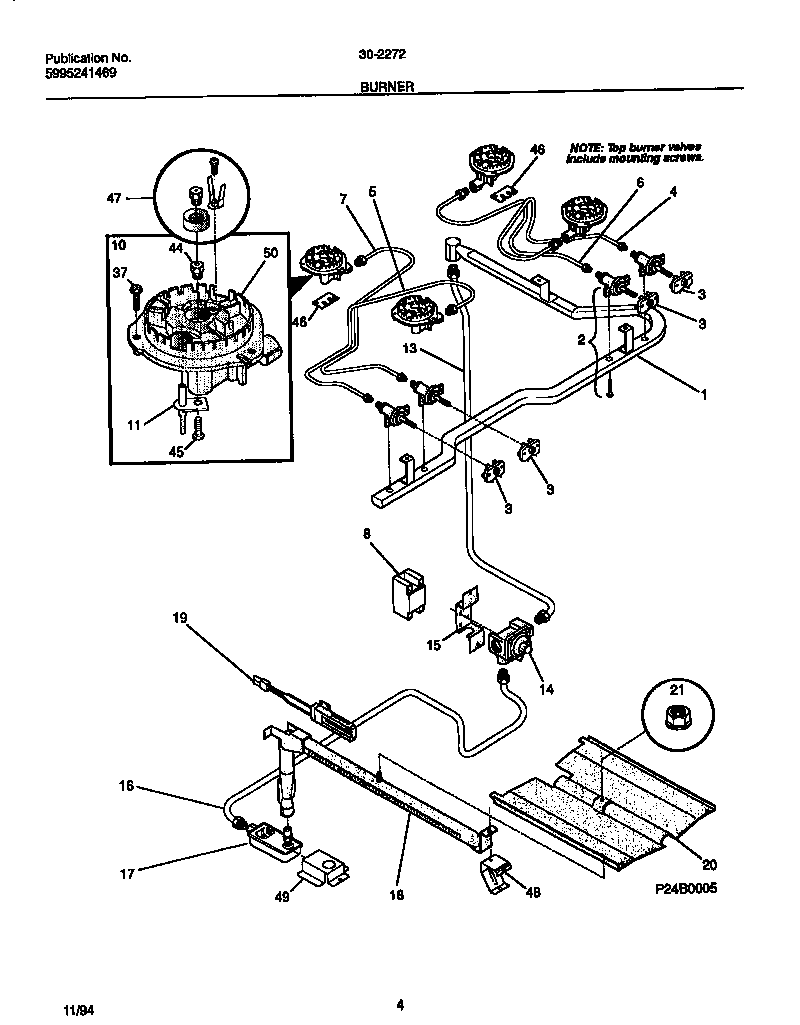

30-2272-00-03 03 – BURNER

30-2272-00-03 03 – BURNER

Written by

in

30-2272-00-03 03 – BURNER

Products

PositionProduct
1WCI 5303271375
2VALVE, TOP, 2 POS, (4)
3WCI 316032001
4WCI 316059600
5316059613 Frigidaire Oven Tube-LF
6WCI 316059602
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10WCI 316010600
11316011200 Frigidaire Oven Top Burner Igniter
13TUBE-ALUM 3/8 REG/MANIFOLD PIPE
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 5303269491
47WCI 5303286386
48WCI 3018603
49BRKT.-VALVE
50WCI 316010700
