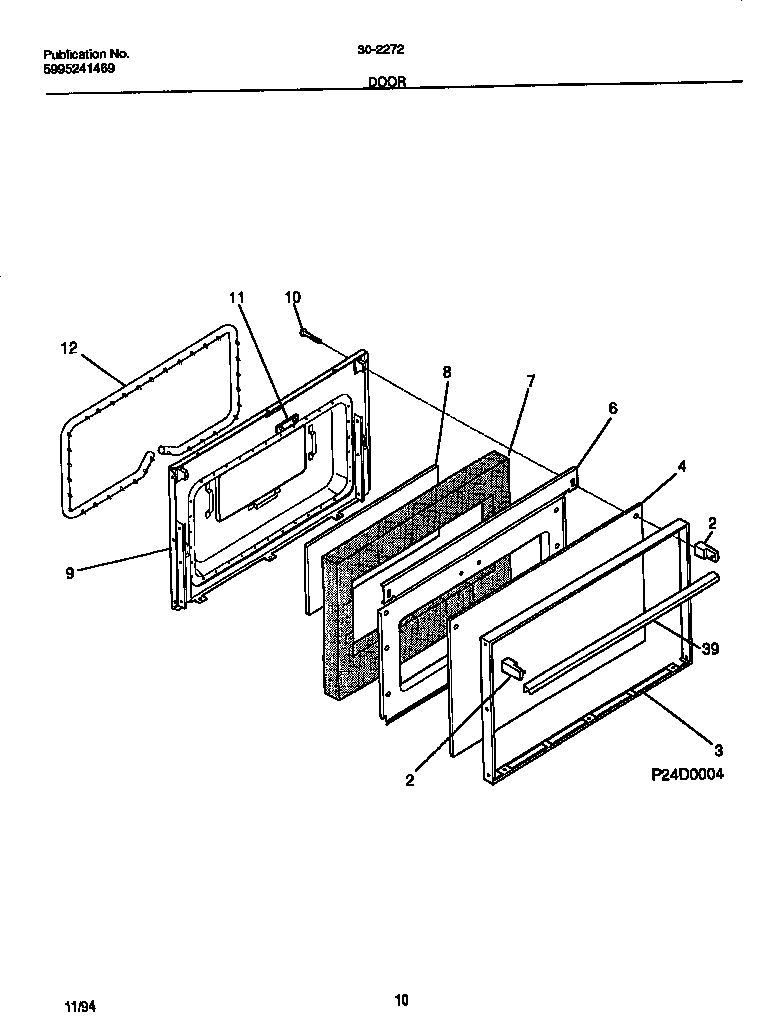

30-2272-00-03 06 – DOOR

Products

Position	Product
*29765	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*29767	WCI 5303269859
*29766	5303300265 Frigidaire Oven Screw
*29768	5303271648 Frigidaire Oven Screw
2	316137003 Frigidaire Range / Cooktop End Cap
3	WCI 5303209518
4	GLASS-OVEN DOOR, BLACK, OUTER
6	SHIELD-INSULATION
7	INSULATION-OVEN DR
8	GLASS-OV DR (REAR)
9	WCI 5303209515
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11	WCI 5303015373
12	5303202011 Frigidaire Door Seal
39	HANDLE-DOOR, OVEN
